Ka0s KickCD

wow CurseForge Version license

alt text

KickCD is a lightweight, single-folder WoW addon that helps the player make informed interrupt decisions in real time. It pairs two pieces of UI:

  • A movable, persistently-visible icon grid of the player's interrupt + cast-stopping CC abilities, with cooldown swipes and a clear ready / not-ready state. Sensible defaults per class and spec; the secondary block can be anchored to any of 13 points on the primary icon and filled in any of 8 grow directions.
  • An independently-anchored target cast bar that mirrors the current target's cast or channel — spell icon, name, and remaining time. Bar fill color, background, border style, and font are configurable per interruptibility state (interruptible vs. uninterruptible). The bar can free-float, anchor to the icon grid's primary icon, and auto-size to the grid's actual visible footprint.

Both panels share a single addon-wide visibility mode and a single drag lock. The addon is fully compatible with WoW 12.0's "secret value" protection on protected-interrupt cooldowns and casting info.

Everything is configurable through the standard Blizzard Settings panel and through the /kcd slash command (every panel control has a CLI peer via /kcd get / /kcd set).

Screenshots

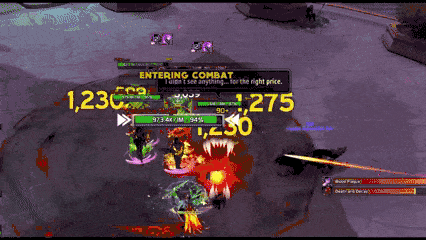

Addon in action

alt text

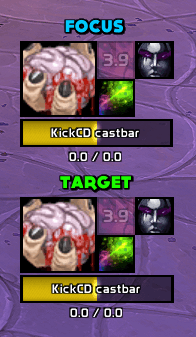

Zoomed in view of the icon grid and cast bar

alt text

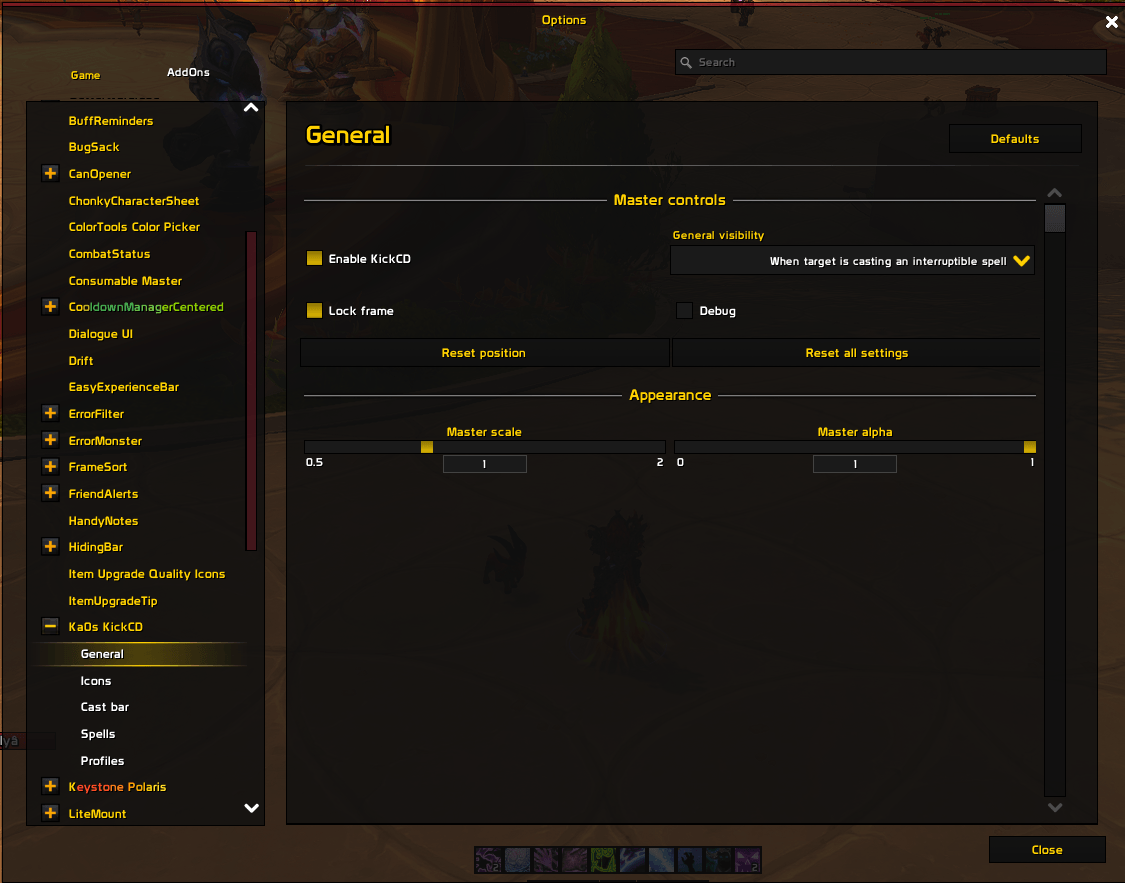

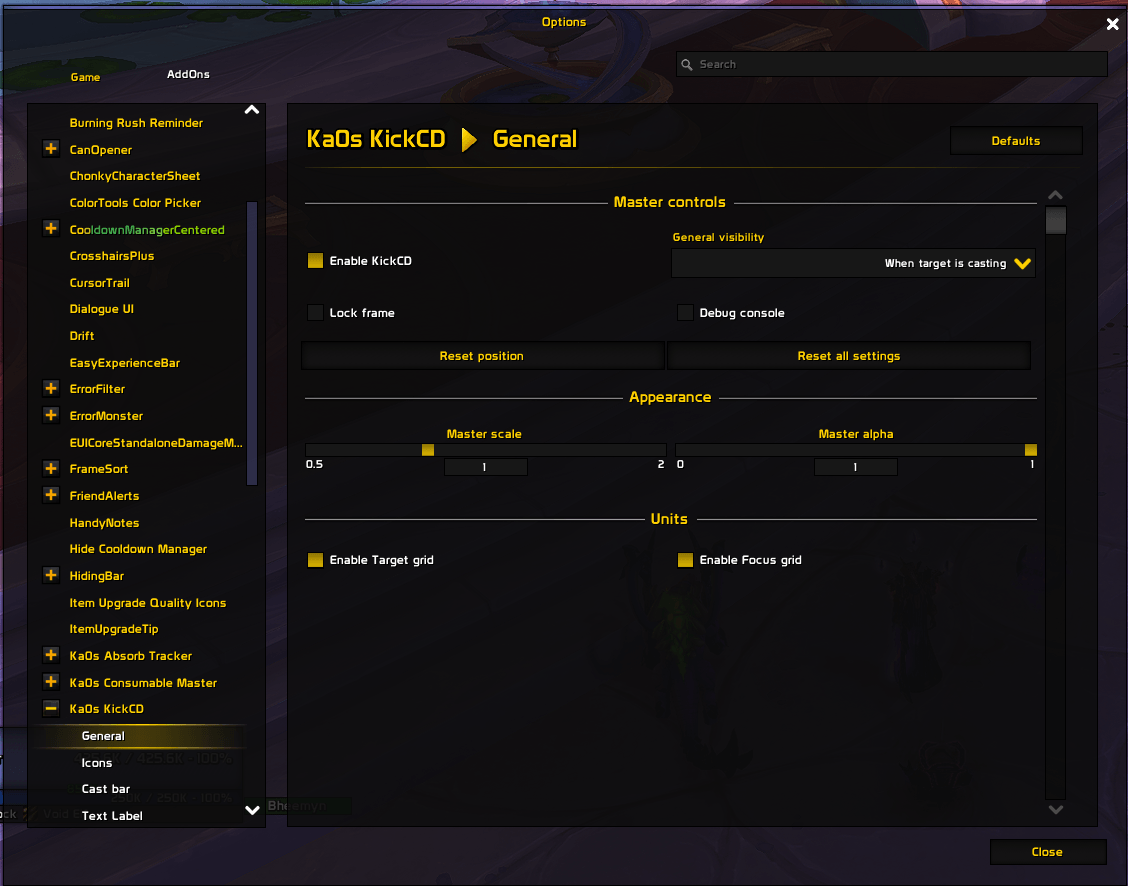

General settings panel

alt text

Icons setting panel

alt text

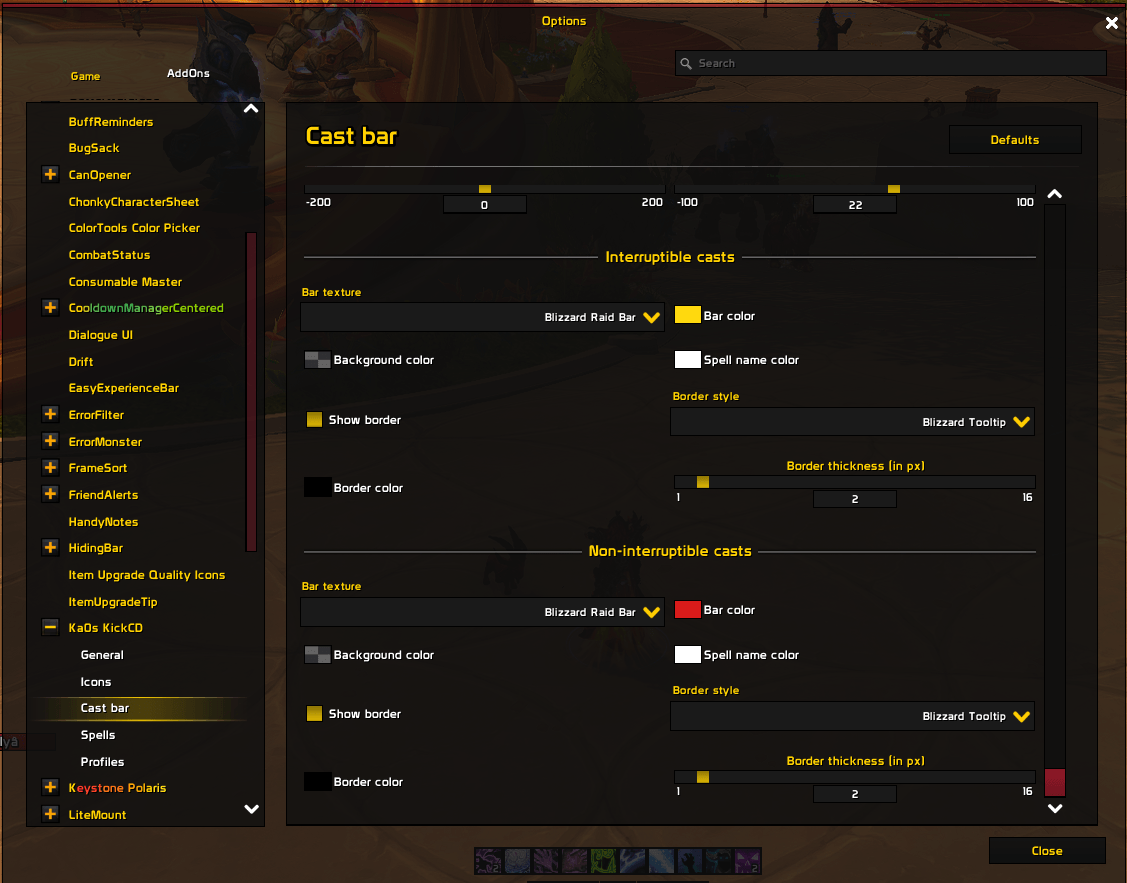

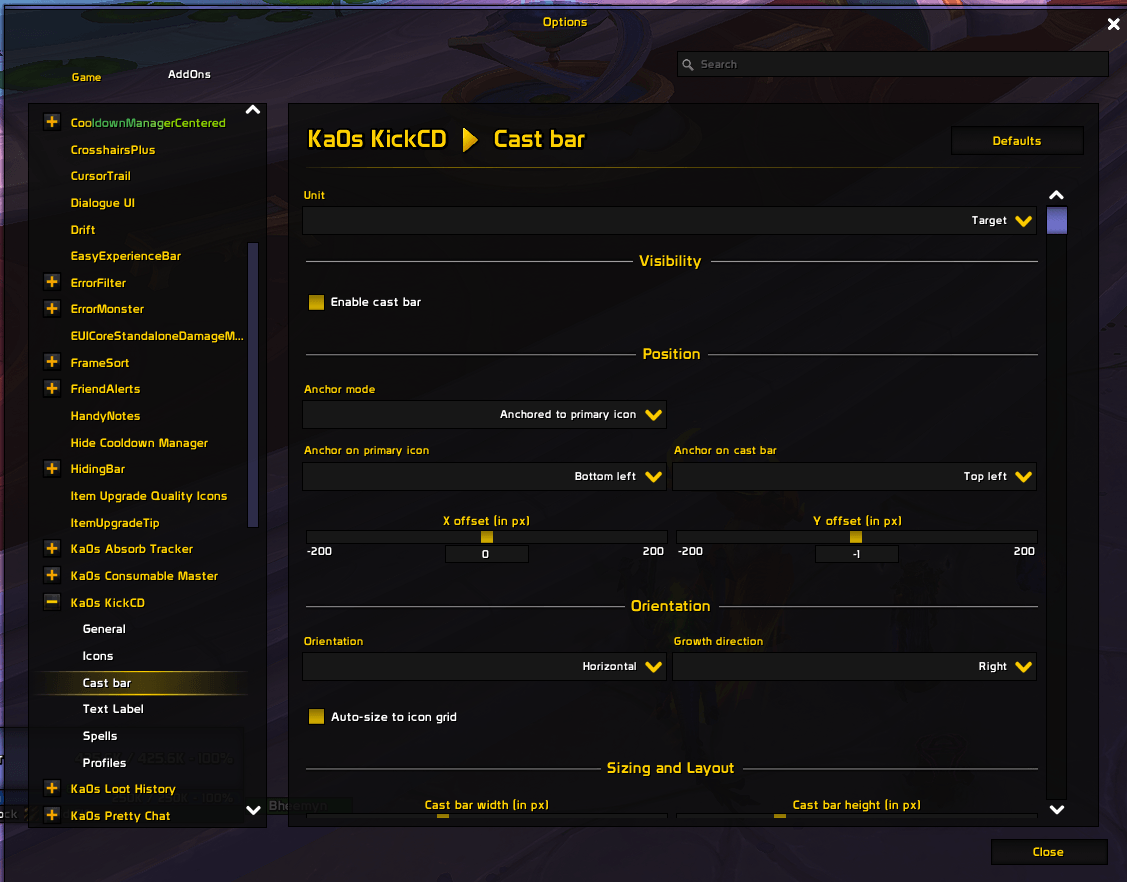

Castbar settings panel

alt text

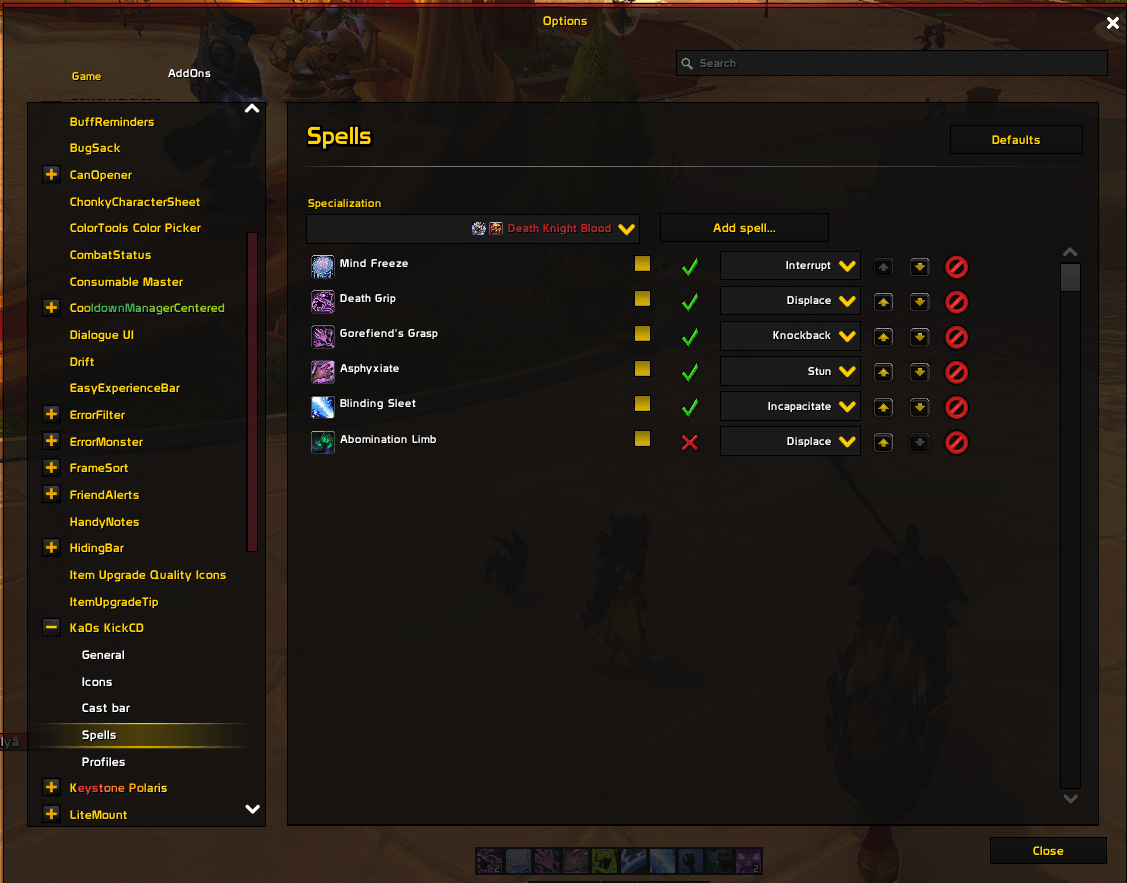

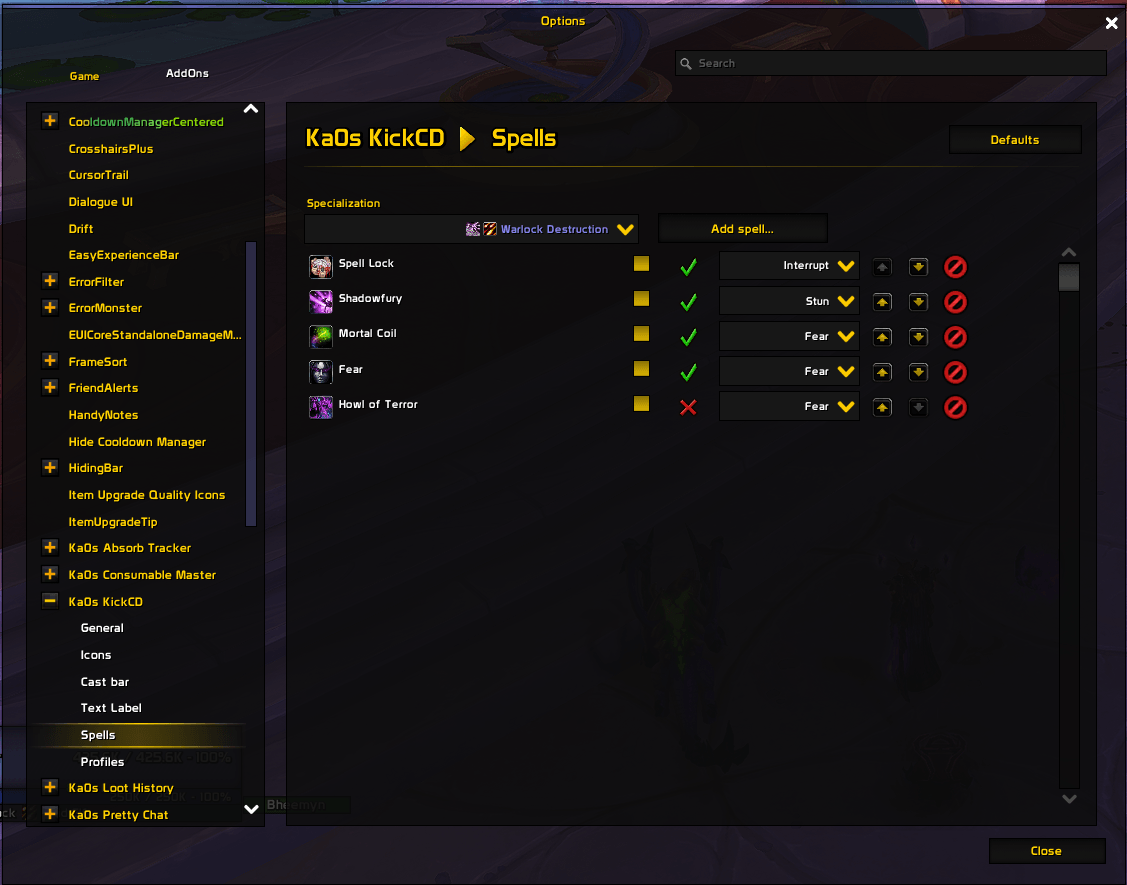

Spells settings panel

alt text

Usage

Slash commands

/kcd is the short form; /kickcd is a long-form alias for the same handler. Every chat line is prefixed with a cyan [KCD] banner.

Command Purpose
/kcd Print the help index.
/kcd config Open the settings panel. Refuses during combat (Blizzard's category-switch is protected). Aliased as /kcd options.
/kcd lock / unlock / toggle Set / clear / flip the shared drag lock for the icon grid and the cast bar.
/kcd list Dump every settings option grouped by panel, with current values.
/kcd get <path> Print one setting's current value (e.g. /kcd get icons.primarySize).
/kcd set <path> <value> Type-aware write. Numbers clamp to range, dropdowns validate against the option list, colors take r g b [a] (e.g. /kcd set castbar.interruptible.barColor 0.2 0.8 0.2 1).
/kcd reset <general|icons|castbar|spells> Reset one panel to defaults. spells rebuilds every spec's list.
/kcd resetall Reset every schema-driven panel and every spec's spell list. Mirrors the General → "Reset all settings" popup; no CLI confirmation.
/kcd resetposition Restore the icon grid to its default screen position.
/kcd spells <subcmd> Per-class+spec spell-list editor: list / add / remove / enable / disable / category / reset. CLASS+SPEC default to the player's current spec when omitted.
/kcd debug spells Dump the watched cooldown list.
/kcd debug castbar Print current target cast state plus configured / live per-state colors.
/kcd debug interrupt Dump UnitCastingInfo / UnitChannelInfo positions plus what the visibility logic decided. Use to diagnose 12.0 secret-value handling.
/kcd debug log Toggle internal-message logging (mirrors General → Debug).

Settings panel

Five subcategories under Ka0s KickCD:

Tab Covers
General Master enable, addon-wide visibility mode, lock, master scale / alpha, debug log. "Reset position" and "Reset all settings" buttons sit under Master controls.
Icons Sizing, layout (anchor + grow + rows × cols), visual states (alpha / tint / GCD swipe suppression), border, annotations (cooldown text font / size / flags, charges, hover tooltip), per-slot ready glow (independent trigger and style for primary vs. secondary icons).
Cast bar Enable, position (free-float or anchored to the primary icon), orientation / growth direction, auto-size to icon grid, sizing, font, per-element text anchors and offsets, per-state appearance for interruptible vs. uninterruptible casts.
Spells Per-class+spec spell-list editor. Class/spec dropdown shows class+spec icons and class-colored entries; rows show known/unknown glyph + spell icon + name + category + enable/move/remove. Header "Defaults" button resets the currently-selected spec only. The grid only renders entries the player can actually cast (talent choice nodes, pet spells while the pet is summoned, etc.).
Profiles Standard AceDB profile management (default / per-character / per-class / per-realm).

Use /kcd unlock to drag the icon grid (and the cast bar, if it's in FREE anchor mode) into position, then /kcd lock to fix them.

Critical settings

A few options change the addon's behavior more than any others.

Visibility modes (General → Master controls → General visibility)

A single visibility selector governs both the icon grid and the cast bar. The master enable toggle still wins — disabled hides everything regardless of mode.

Value (/kcd set visibility …) When the UI shows
always Always.
in_combat Only while combat is active.
target_casting Only while the current target has a cast or channel in progress.
target_casting_interruptible Only while a hostile target is casting and the cast is interruptible. Uninterruptible casts hide. (Default.)

The per-icon glow trigger (Icons → Ready glow → Trigger) reuses three of these values — always, target_casting, target_casting_interruptible — plus a never option to disable the glow entirely. (in_combat is intentionally absent; the glow is a per-cast cue, not a combat-state indicator.) Primary and secondary icons each carry their own trigger.

Cast bar anchoring (Cast bar → Position)

Two modes:

  • Free (drag to move) — the cast bar is a free-floating frame. Unlock with /kcd unlock, drag, lock again with /kcd lock. Position is saved per-profile.
  • Anchored to primary icon — the cast bar attaches to the icon grid's primary icon via three settings: an attach point on the primary icon (one of 13), the matching point on the cast bar (same 13-option set), and an X / Y offset. The cast bar follows the grid for free; the bar itself is not draggable.

Defaults: Anchor mode = PRIMARY, attach point TOP_LEFT ↔ BOTTOM_LEFT, offset (0, 1) — bar sits 1 px above the primary icon, left-aligned.

Cast bar orientation, growth, and auto-size (Cast bar → Orientation)

  • Orientation — HORIZONTAL (default) or VERTICAL. Vertical rotates the whole frame 90°; spark, fill, name, time, and icon layouts all follow.
  • Growth direction — pairs with orientation. Horizontal accepts RIGHT / LEFT; vertical accepts UP / DOWN. Switching orientation auto-resets growth to the canonical default for the new axis.
  • Auto-size to icon grid — when on, the bar's long axis matches the icon grid's actual rendered size in that direction (horizontal → bar width, vertical → bar height). Tracks the grid's visible footprint, so adding/removing/disabling icons resizes the bar in place. The orthogonal dimension stays as configured.

Icon grid anchoring (Icons → Layout)

Primary anchor places the secondary block on the primary icon (12 <SIDE>_<ALIGN> tokens + a 13th CENTER that stacks the block on the primary). Grow direction picks the fill order inside the block (8 combinations of right / left / down / up). Rows × Cols is the block's capacity. Anchor and grow are independent — any anchor pairs with any grow direction.

If more spells are enabled than the block holds, the extras are dropped — the addon prints a one-time chat warning per (class, spec, capacity) tuple so you know to bump rows × cols or remove spells.

FAQ

Question Answer
Does this replace Blizzard's default cast bars? No. The cast bar is a brand-new frame; Blizzard's player and target cast bars are untouched. Disable Blizzard's target cast bar in Edit Mode if you don't want both visible.
How do I move the icon grid / cast bar? /kcd unlock, drag, /kcd lock. The icon grid is always draggable when unlocked. The cast bar is draggable only in Free anchor mode — in Anchored mode it follows the primary icon. /kcd resetposition snaps the grid back to its default screen position.
Where do my spell defaults come from? Why doesn't every class spell I expect show up? Defaults are per-class+spec and only seeded once, on first profile creation, from defaults/Spells.lua. The grid then renders only the spells the player can actually cast — wrong-talent choice-node spells, unlearned spells, and pet abilities while no pet is summoned are filtered out at render time. To restore defaults later, /kcd reset spells (every spec) or /kcd spells reset [CLASS SPEC] (one spec).
Can I add my own spells? Yes — Settings → Spells, or /kcd spells add SPELL_ID category. When editing your own active spec, only spells already tracked by the Cooldown Manager validate; the editor shows an error if not.
Does the addon track items / trinkets? Not yet. Spells only.
Why does the settings panel refuse to open during a pull? Blizzard's category-switching is protected in combat, so opening any settings subcategory mid-fight would taint the panel. /kcd config errors out cleanly until combat ends.
Are there profiles? Per-character configs? Yes — full AceDB profiles under Settings → Profiles. Every character on the account starts on the shared Default profile; opt into per-character / per-class / per-realm scope from the Profiles panel if you want a character (or group of characters) to diverge.
What does "secret value" mean and why does it matter? WoW 12.0 marks certain protected-interrupt cooldown timings and notInterruptible flags as opaque tokens that error if an addon tries to compare them in Lua. KickCD never compares them; the visibility / glow / interruptibility decisions are routed through C-side Blizzard methods that accept the protected values directly. Run /kcd debug interrupt to see what the gate decided for the current target.
Does the bar fill direction affect channels? Channels drain in the same direction the equivalent cast would fill — a HORIZONTAL + RIGHT bar drains right-to-left during a channel.

Troubleshooting

Symptom What to check
The icon grid never appears. (1) Master enable: /kcd get enabled must be true. (2) Visibility mode: /kcd get visibility — in_combat requires combat, target_casting* requires an actively-casting target. (3) The active spec has at least one enabled spell the player knows. /kcd debug spells lists the watched cooldowns.
The icon grid won't drag. It's locked. /kcd unlock, drag, /kcd lock. If /kcd unlock doesn't visibly flip the lock state, run /kcd toggle.
The cast bar shows on uninterruptible casts even though I picked "interruptible only". A bar that visually fades to alpha 0 during an uninterruptible cast is the gate working as intended (the frame still exists; only its alpha changes). For other cases, run /kcd debug interrupt while the offending unit is casting and report the output.
Cooldown text is stuck at 0.0 for a few seconds after a spell finishes. Should not happen since the 1.0.0 fix. If you see it, capture /kcd debug spells output during the stuck window and report it. Make sure Icons → Annotations → Show cooldown text is enabled.
Glow on secondary icons looks janky / restarts every ~0.1s. Should not happen since the 1.0.0 fix. If you see it, confirm the trigger is set to one of the target casting options and capture the cast bar / icon configuration plus a video.
Settings panel won't open mid-pull. Intentional — Blizzard's settings category-switch is protected in combat; KickCD refuses rather than silently tainting the panel. /kcd config works the moment combat ends.
Cast bar doesn't auto-size to the grid. Toggle Auto-size off and on, or run /kcd resetposition to force a layout pass. Auto-size only governs the long axis; the orthogonal dimension stays at the configured Width / Height.
I want a clean slate. One panel: /kcd reset general / icons / castbar / spells. Everything except profiles: /kcd resetall (or General → Reset all settings). Just the icon grid's screen position: /kcd resetposition. A specific spec's spell list: /kcd spells reset CLASS SPEC or the Spells panel's per-spec Defaults button.

Issues and feature requests

All bugs, feature requests, and outstanding work are tracked at https://github.com/tusharsaxena/kickcd/issues. Please file new reports there rather than as comments — the issue tracker is the single source of truth for the project's backlog.

Testing

There is no automated test harness — verification is manual, in-game. The end-to-end smoke-test suite covering install, visibility modes, lock/drag, cast bar, spec/talent/pet rebuilds, profiles, and 12.0 secret-value safety lives at docs/smoke-tests.md. Run it before tagging a release or after refreshing libs / bumping ## Interface:.

Version History

Version Date Notes
1.1.0 2026-05-03 Vendored LibSharedMedia dropdown widgets with texture/font/border previews and first-run defaults. Added KickCD_COMBAT_STATE bus message, consolidating PLAYER_REGEN_* in core/State.lua. Filtered UNIT_SPELLCAST_* events to the target unit via private dispatch frames. Settings panel: parent page now renders logo + slash-command list, sub-pages get breadcrumb headers with an atlas-chevron separator, and OpenSettings is combat-lockdown-gated at the function. Unified cyan [KCD] chat prefix across all slash output. Docs collapsed into a single root CLAUDE.md / ARCHITECTURE.md with expanded docs/ index, comprehensive smoke-test suite, and review artifact conventions. Internal cleanup: dropped dead Settings/Util exports and unused record fields; codified no-auto-commit / no-version-bump workflow; CRLF normalized via .gitattributes.
1.0.1 2026-05-02 Build retrigger; no functional changes.
1.0.0 2026-05-02 Initial release. Interrupt/CC cooldown icon grid (12-anchor + 8-way grow) and target cast bar with interruptibility coloring and auto-size. Schema-driven five-tab settings panel with full /kcd slash parity, two-column layout, and per-tab Defaults. 12.0 secret-value-safe pipeline for cooldowns, cast info, glow, and dimming. Visibility modes (always / in_combat / target_casting / target_casting_interruptible) with per-icon ready glow via LibCustomGlow. Per-spec spell lists seeded from Baratus's Midnight class-info sheet, with hover tooltips and known/unknown glyphs. AceDB profiles defaulting to Shared. Ace3 + LibSharedMedia + LibCustomGlow vendored.
