LibTraceKit

▶︎ Because scrolling through 200 lines of print() is not a debugging strategy.

LibTraceKit is a lightweight tracing library for WoW addon developers. Create a tagged tracer with TraceKit('<Addon Name>') and call it like a function to send labeled debug messages to Blizzard's Event Trace UI.

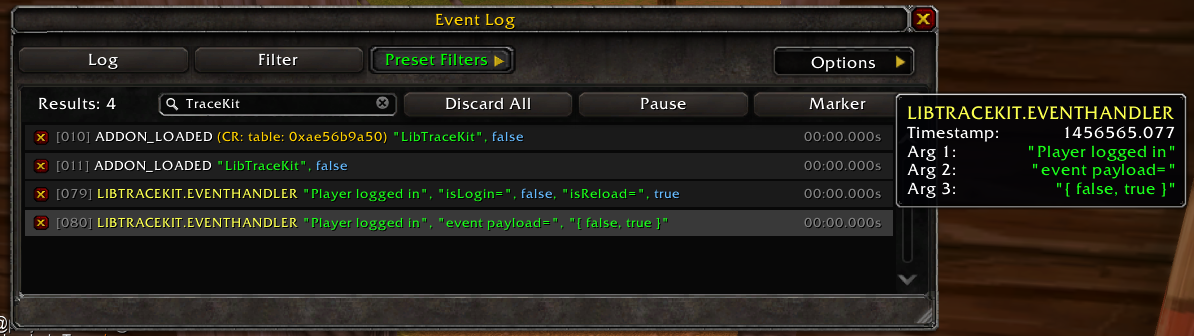

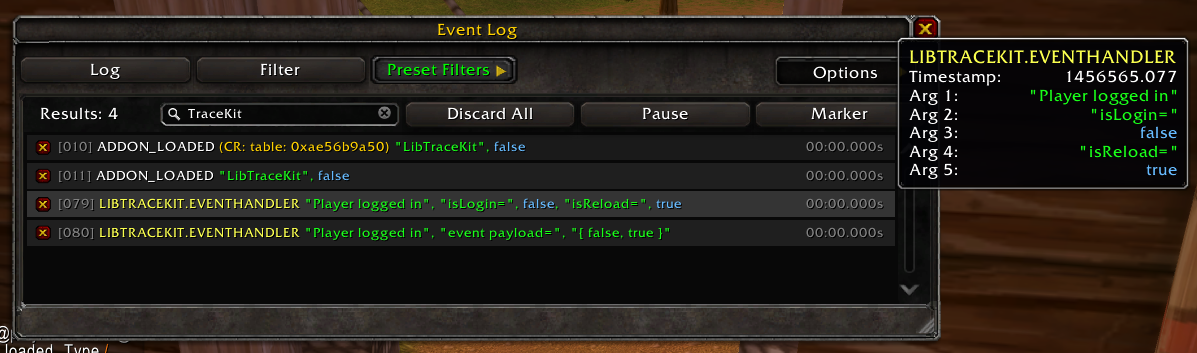

Rather than scattering print() calls through your addon or maintaining a separate debug log, LibTraceKit routes your trace output straight into /etrace — so your custom messages appear interleaved with real game events, in the correct time order, in one place. Tagging each tracer by addon or module name keeps output readable even when multiple addons are tracing at once.

Create the tracer once, then call it anywhere like a regular function — no manual event registration, no formatting boilerplate.

Usage

LibTraceKit:New(namespace, hexColor) returns a TraceKit_MultiFunction-1.0 instance, which is fluent: its With* methods configure the tracer and return self, so calls can be chained directly off New(). Use WithTag(tag) to label a tracer by module or subsystem, and WithDelimiter(delim) (or the WithUnderscoreDelimiter() shortcut) to override how the namespace and tag are joined in the trace output (default ::).

New() also returns a second, optional value: fmt, a formatter you can use to pretty-print tables and other complex values before passing them to the tracer.

--- @type LibTraceKit-1.0
local LibTraceKit = LibStub('LibTraceKit-1.0')

--- @type TraceKit_MultiFunction-1.0, LibTraceKit_Formatter-1.0
local t, fmt = LibTraceKit:New('libtracekit', '29FFEF')

Examples using fluent functions (Preferred)

Chain With* methods off New() to override defaults — tag, color, and delimiter — without passing everything as positional args up front.

--- @type TraceKit_MultiFunction-1.0
local t = LibTraceKit:New('libtracekit')
                  :WithTag('Main'):WithUnderscoreDelimiter()

--- @type TraceKit_MultiFunction-1.0
local t = LibTraceKit:New('libtracekit')
                  :WithTag('EventHandler')
                  :WithColor('FF9C8C')
                  -- OR use the blizzard predefined color vars
                  -- :WithColor(RARE_BLUE_COLOR)
                  :WithDelimiter('.')

Tracing Simple Variables

Call the tracer like a plain function, passing a label followed by any number of values — they show up together as one entry in /etrace.

The returned t is both things at once: it's the TraceKit_MultiFunction-1.0 instance returned by New() (or WithTag/WithDelimiter), and it's directly callable as a trace function. There's no separate object to unwrap — the same t you configure with :WithTag(...) is the t(...) you call to trace.

local isLogIn, isReload = ...
t('Player logged in', 'isLogin=', isLogIn, 'isReload=', isReload)

Tracing Complex Variables

For tables or other complex values, wrap the argument in fmt(...) — backed by LibPrettyPrint — so it prints as a readable structure instead of a raw table reference.

--- @type TraceKit_MultiFunction-1.0, LibTraceKit_Formatter-1.0
local t, fmt = LibTraceKit:New('libtracekit', '29FFEF')
t('Player logged in', 'event payload=', fmt({...}))

More Examples

-- prints a table hash of spellInfo
t('Spell casted', 'spell=', spell, 'spellInfo=', spellInfo)

-- prints a formatted spellInfo (to-string)
t('Spell casted', 'spell=', spell, 'spellInfo=', fmt(spellInfo))

Alternative: Creating a Plain Trace Function

If you don't need the fluent With* methods, CreateTraceFunction takes all settings up front and returns a plain function instead of a TraceKit_MultiFunction-1.0 instance.

local t, fmt = LibTraceKit.CreateTraceFunction('MyAddOn',
   'MainController', RARE_BLUE_COLOR, '_')
t('Player logged in', 'isLogin=', isLogIn, 'isReload=', isReload)

Or skip the color and delimiter entirely and let them fall back to the defaults:

local t, fmt = LibTraceKit.CreateTraceFunction('MyAddOn', 'MainController')
t('Player logged in', 'isLogin=', isLogIn, 'isReload=', isReload)
