ETT - EMI Tree Tabs

# EMI Tree Tabs

Track more than one EMI recipe tree at a time, and get a crafting list that spans all of them.

**Minecraft 1.20.1 · Forge · requires [EMI](https://modrinth.com/mod/emi) 1.1+ · client-side only**

EMI keeps exactly one crafting tree in memory, so opening a second one silently throws away the
first. This mod keeps a list of them and swaps the right one into place when you change tab — EMI's
own tree screen does all the drawing and editing, so every tree behaves exactly as you expect.

---

## What it does

### Tabs

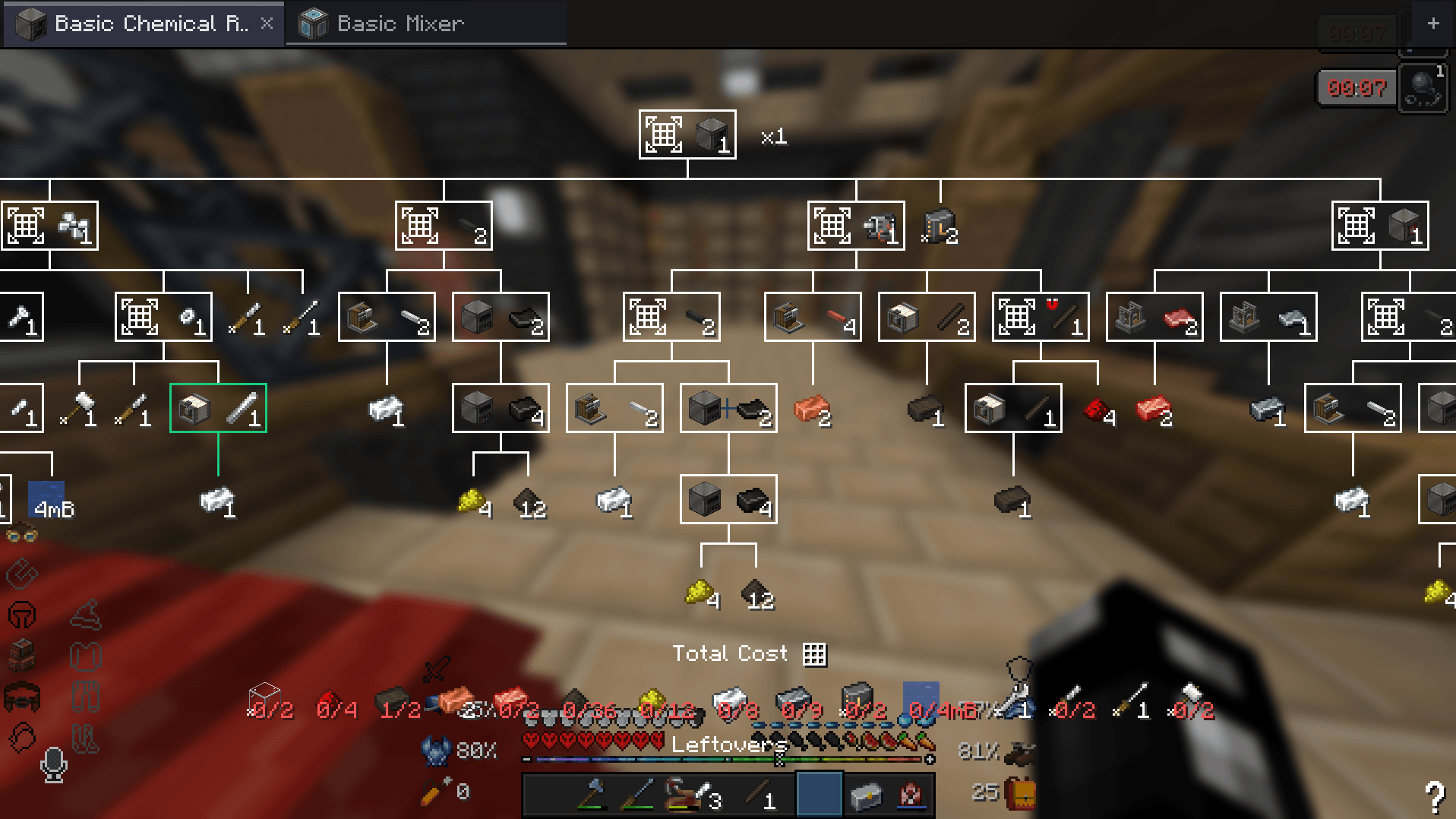

Every tree you open becomes a tab instead of replacing the last one. Hold **Shift** while opening to
invert that for one click.

- **Live progress per tab** — grey (nothing gathered), amber (partly stocked), green (you have
  everything), checked against your inventory on a timer
- **Fork a tree** with `+` or `Ctrl+D` — same goal, independent resolutions, so you can compare two
  routes to the same item side by side
- **Rename** so "Reinforced alloy for the smelter" isn't just another iron ingot icon
- **Per-tab viewport** — each tab keeps its own pan, zoom and batch count
- **Per-tab view/craft mode** — mirrors EMI's own mode button, but per tree. Only trees in crafting
  mode feed the crafting list, so you can keep a dozen open for reference and still see only what
  you're actually building
- **Tabs survive restarts and resource reloads** — stored as their goal recipe plus the resolutions
  you picked, then rebuilt

### Crafting list across every tree

With more than one tree in crafting mode, EMI's crafting list draws from all of them, with duplicate
recipes and materials merged into single entries.

Trees are costed against a **shrinking pool** rather than each getting your whole inventory. Two
trees each needing 10 iron with 10 in the chest correctly report 10 still needed, instead of both
declaring themselves satisfied. Reorder tabs to change which tree gets first claim.

### A real second sidebar panel

The mod adds a **Crafting** page type to EMI's own sidebar picker, alongside Index, Craftables and
Favourites. Add it as a *page* or a *subpanel* on any sidebar and the crafting list lives there,
leaving your favourites alone.

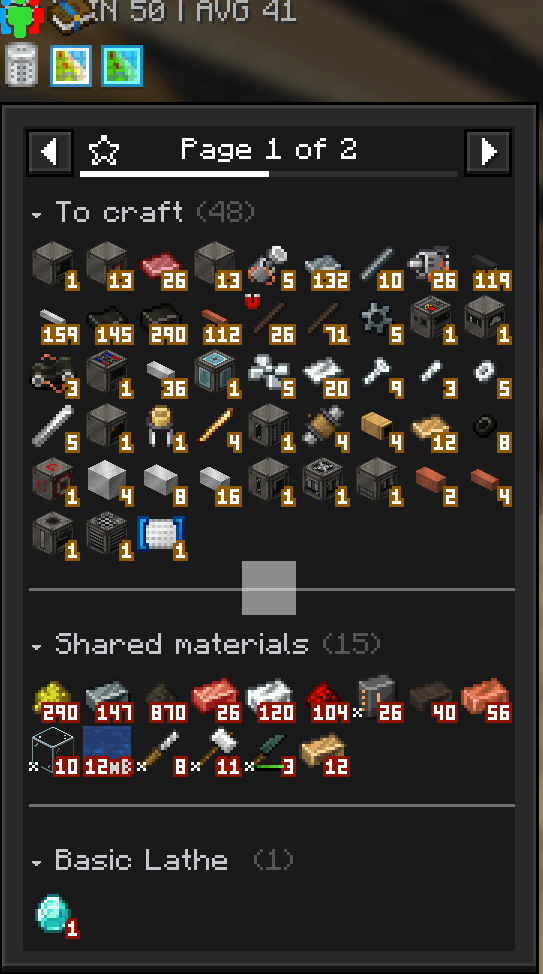

The list is split into **To craft**, **Shared materials** (wanted by two or more trees) and one
section per tree, with a rule between sections and titles you can click to fold.

---

## Controls

All on EMI's recipe tree screen.

| Action | Binding |
| --- | --- |
| Switch tab | Left click, or `Ctrl+Tab` / `Ctrl+Shift+Tab` |
| Jump to tab 1–8, or last | `Ctrl+1` … `Ctrl+8`, `Ctrl+9` |
| Reorder | Drag a tab sideways |
| Rename | Right click a tab, or `F2` |
| View ⇄ craft mode | `Ctrl+click` a tab |
| Close | Middle click, the `×`, or `Ctrl+W` |
| Reopen closed tab | `Ctrl+Shift+T` |
| Fork the current tree | `+` button, or `Ctrl+D` |
| Scroll the strip | Mouse wheel over the bar |

---

## Setting up the second panel

1. In **EMI's** settings, add a page or subpanel to a sidebar
2. Choose **Crafting** from the picker

That's it. Once a Crafting panel exists the favourites sidebar stops carrying the crafting list, so
it isn't shown twice.

If the page type is missing from the picker, the mod could not register it — check `latest.log` for
a warning from `emitreetabs`, and it will fall back to sharing the favourites panel.

---

## Config

In game: **Mods → EMI Tree Tabs → Config**, which needs
[Cloth Config](https://modrinth.com/mod/cloth-config). That is a *soft* dependency — without it the
mod works identically and you edit `config/emitreetabs.json` by hand. Edits to that file are picked
up within a couple of seconds without restarting.

| Key | Default | Meaning |
| --- | --- | --- |
| `enabled` | `true` | Off means no tab bar and stock EMI behaviour |
| `openInNewTab` | `true` | New trees open as a new tab; Shift inverts per click |
| `persistTabs` | `true` | Save open tabs between sessions |
| `showProgress` | `true` | Colour tabs by inventory progress |
| `progressIntervalMs` | `500` | How often to recheck progress |
| `barAtBottom` | `false` | Move the tab strip to the bottom of the tree screen |
| `maxTabs` | `32` | Each tab holds a whole material graph, so this is the main lever on memory |
| `closedTabHistory` | `16` | How many closed tabs `Ctrl+Shift+T` can restore; `0` disables |
| `keyboardShortcuts` | `true` | Master switch for the shortcuts above |
| `aggregateCraftingFavorites` | `true` | Crafting list draws from every tree in crafting mode |
| `sharedCraftingInventory` | `true` | Trees claim materials in tab order rather than each assuming the whole inventory |
| `groupCraftingList` | `true` | Split the crafting list into sections |
| `showGroupSeparators` | `true` | Draw a rule between sections |
| `collapsibleGroups` | `true` | Click a section title to fold it |
| `craftingInFavorites` | `true` | Allow the favourites sidebar to also carry the crafting list. Ignored once a Crafting page is placed, since it would otherwise show twice |
| `craftingPanelSide` | `NONE` | Fallback: take over one side's Favourites panel |

---

## Known limitations

- **Section titles take a full row.** EMI's sidebar is a fixed 18px grid and hover detection maps
  mouse position back through that same arithmetic, so giving a title only its text height would
  mean overriding EMI's layout in several places at once and risking clicks landing on the wrong
  item. The separator lines are free — they're drawn in the gap — but text is not.
- **Sections align to rows, not pages.** EMI paginates sidebars, so a section can straddle a page
  break. Padding to page boundaries would waste a lot of slots in a narrow sidebar.
- **A merged tree can only hold one recipe per ingredient**, which is why there is no single
  combined tree view. Two tabs smelting iron differently could not both be honoured in one.

## Compatibility

Hooks EMI's internals rather than a public API, because EMI exposes none for crafting trees. Pinned
working combination: **EMI 1.1.24 · Forge 47 · MC 1.20.1**. An EMI update that renames the internals
listed in the source will break this, most likely as a startup error rather than a silent failure.
Tested alongside EMI++ (`emixx`), which touches some of the same classes.

## Building

Needs a **JDK 17**.

```bash
./gradlew build
```

The jar lands in `build/libs/`. `./gradlew runClient` starts a dev client with EMI on the classpath.

## AI disclosure

The code in this mod was written by an AI assistant working from my direction. See
[AI-DISCLOSURE.md](AI-DISCLOSURE.md) for the full statement.

## Licence

[MIT](LICENSE).
