Another Dynamics

Another Dynamics is a NeoForge logistics mod built around duct networks: pipes that move items, fluids, Forge Energy (FE), Mekanism chemicals, and Mekanism heat. Each face that touches a machine is a full node—extract, filter, retrieve, or hybrids—with routing, redstone, channels, and upgrade modules.

It is designed for factories that outgrow basic hoppers, with optional soft compatibility for other logistics mods when installed.

What the mod does

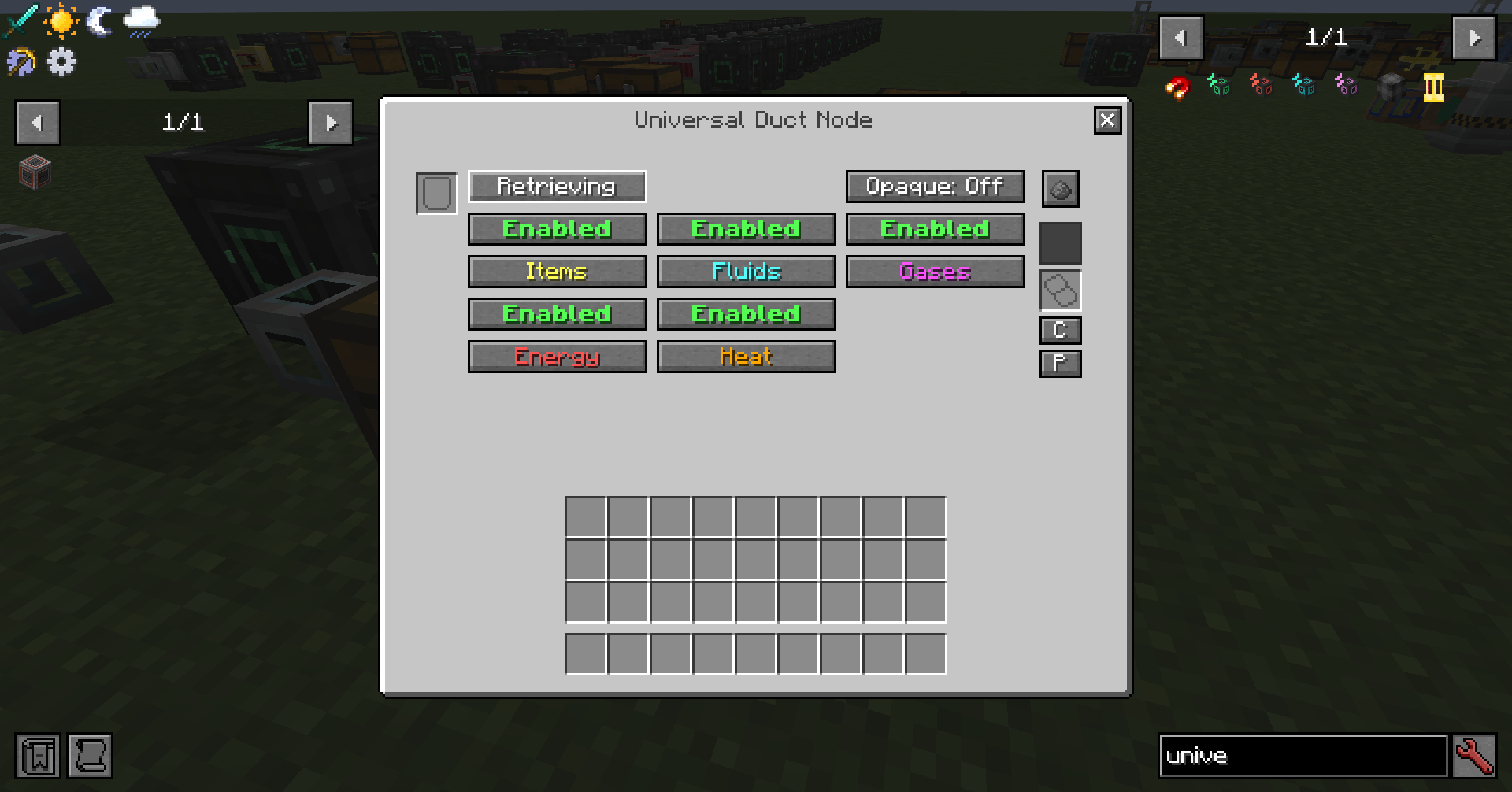

• Typed ducts for items, fluids, FE, gas, heat, plus a Universal Duct that carries several kinds on one network (per-lane hub).
• Per-face nodes with modes (None, Extraction, Filtering, Retrieving, and hybrids), allow/deny filters, routing, and redstone.
• Increment Modules I–V socketed into faces to raise batch size, speed, filter slots, and energy/heat throughput (including Mekanism heat when available).
• Project Ducts to sketch a network, then convert the layout into a real duct type.
• Settings Copier to copy/paste node configs and edit filter lists offline. With Pipez installed, it can optionally import whole-pipe settings (one-way).
• Soft compat with Cable Facades, JEI, and FTB Ultimine.

How to use (quick guide)

1. Place Item / Fluid / Flux ducts between inventories, tanks, or machines.
2. Right-click a node face (where the duct touches a block) to open the GUI.
3. Set one side to Extraction and the other to Filtering (or None if you accept everything).
4. Optionally Shift+right-click an Increment Module onto a node face (or use the module slot).
5. For layout work: build with Project Ducts, then Shift+use a real duct item to convert the network.
6. With Pipez (optional): Shift+right-click a Pipez pipe with a Settings Copier to import settings, then paste onto Another Dynamics nodes.
7. If you disable opaque mode, you can see what’s passing through the duct; you can re-enable it either for all ducts or for a single duct network only.

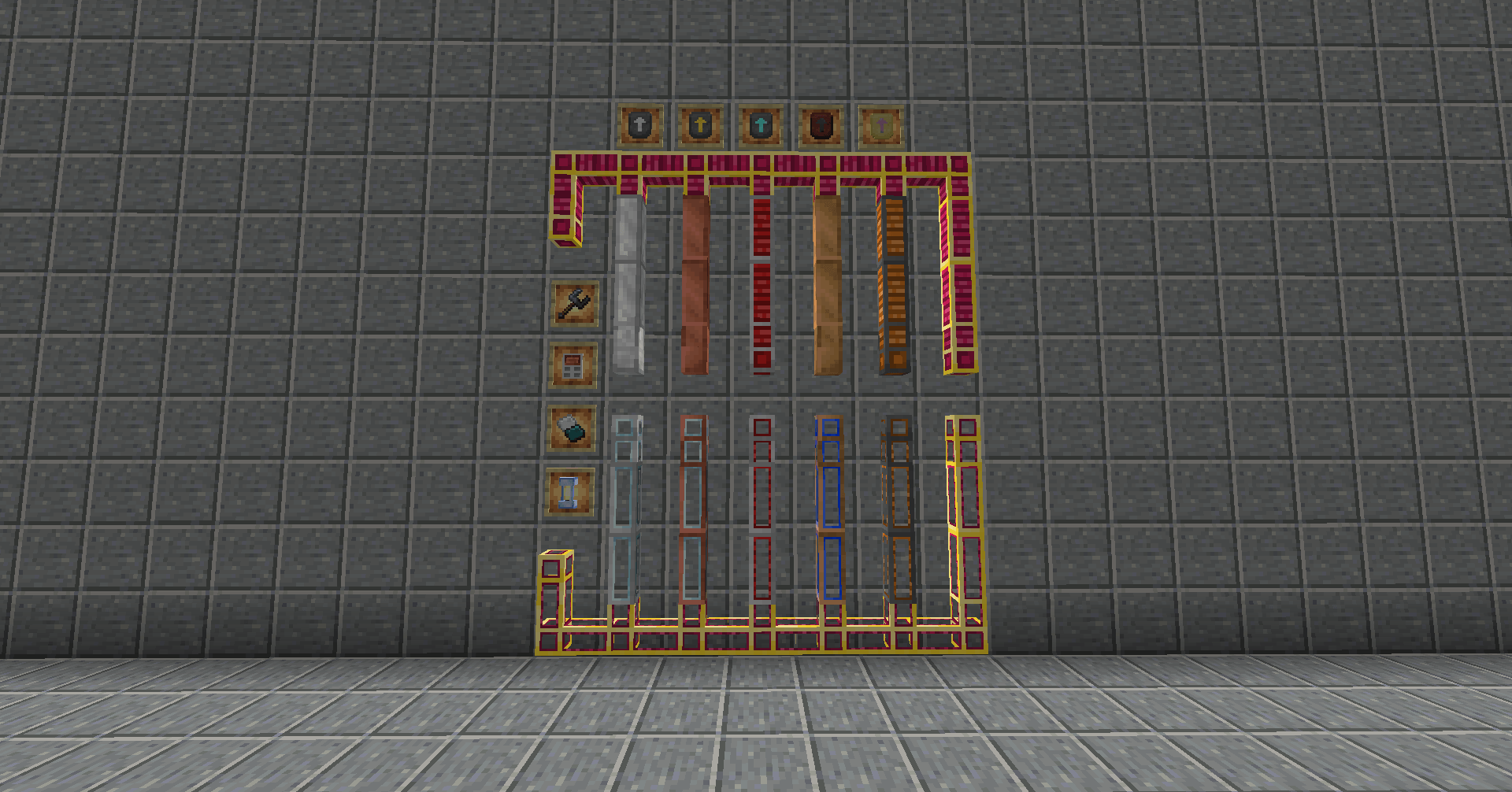

Ducts

All duct items appear in the Another Dynamics Ducts creative tab.

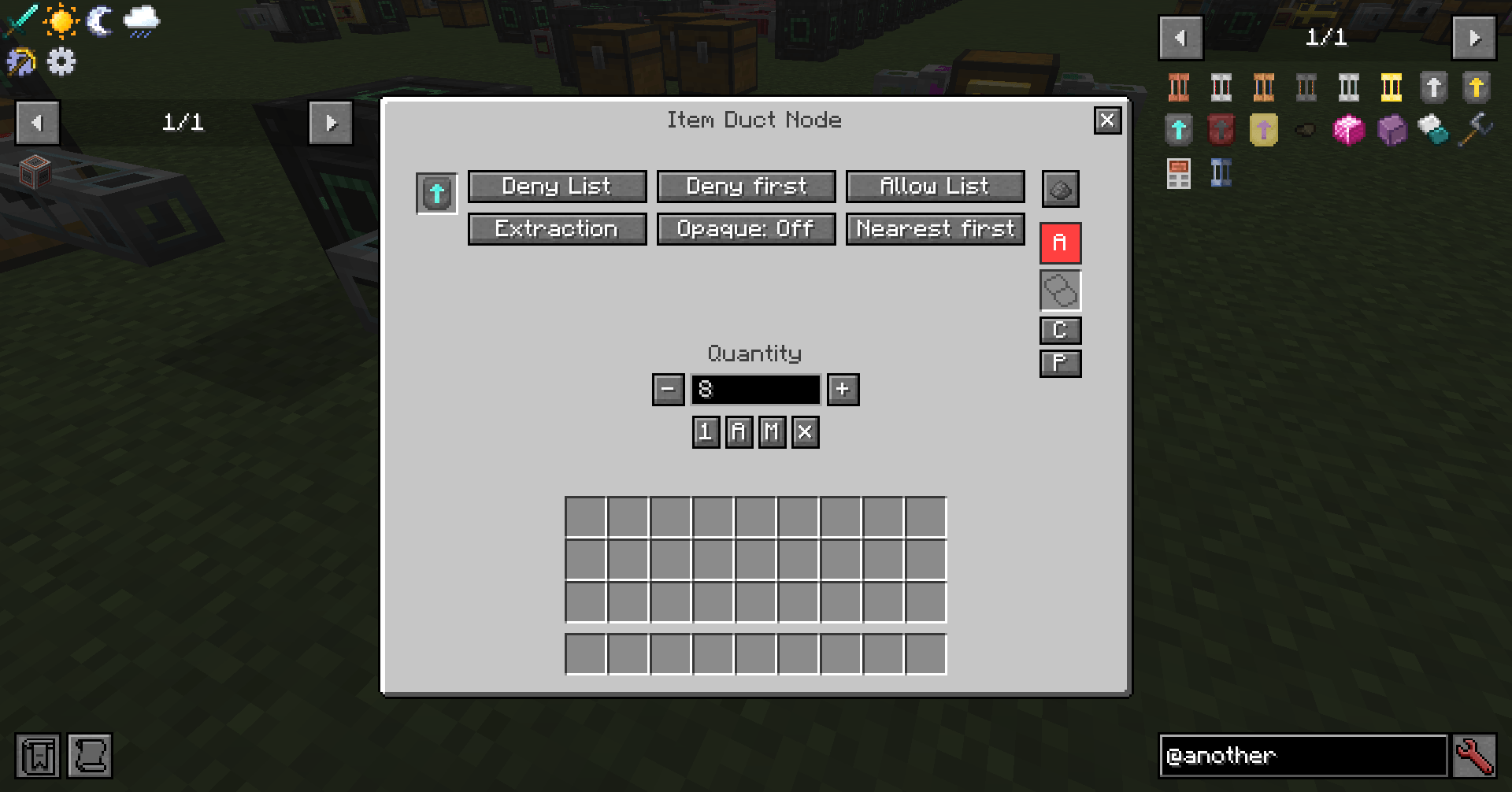

Nodes & filters (main features)

• Modes: None, Extraction, Filtering, Extr/Filt, Retrieving, Retr/Extr.
• Routing: nearest, farthest, middlest, round-robin, random.
• Filters: allow/deny lists with deny-first or allow-first logic; concat letters (AND within a letter, OR across).
• Syntax: -id, #tag, @mod, ?nbt, macros like &enchanted, &damaged>0, fluid &temperature…, gas &radioactive…, and &anything_else.
• Caps: Insert Limit / Keep in Storage on allow lines; remote destinations via Remote Node Selector.
• Wrench: disconnect/reconnect arms (Bulky Wrench or any common wrench tag).

Modules

Use Increment Modules I–V to scale item, fluid, FE, gas, and heat faces.

Tools

Optional mods

The mod works without any of these.

ModPack makers

Duct and module balance is datapack-driven (declare_duct / declare_module under data/*/load/). See the GitHub wiki for developer documentation.
