Meritum Engine — v1.1

A modular achievement system designed for Minecraft Bedrock Script API add-ons.

Compatible with Minecraft 1.21.100+ Script API: 2.1.0

Overview

Meritum Engine is a script-based achievement system built for Minecraft Bedrock add-ons using the Script API.

It allows developers to register and manage custom achievements programmatically, while the engine automatically handles:

• Player progress storage
• Achievement detection
• Notification display
• Rewards
• Administrative control

The engine was designed to be reusable and modular, allowing other add-ons to integrate with it and register their own achievements without needing to modify or rewrite the core system.

Why Use Meritum Engine

Meritum Engine allows add-on developers to implement complex achievement systems without needing to build event tracking, persistence systems, or user interface logic from scratch.

By using the engine, developers only need to define the conditions for their achievements while the system automatically manages:

• Event detection
• Achievement validation
• Player data storage
• Notifications
• Rewards

This makes the engine suitable as a shared achievement layer across multiple add-ons.

How the Engine Works

The engine maintains an internal achievement registry where each achievement is registered using a unique identifier.

There are two ways to register achievements:

Method 1 — Internal (modify the engine)

Call registerAchievement directly inside the engine's own files:

registerAchievement("example.mine_block", {
  name: "Stone Breaker",
  description: "Break a stone block.",
  rarity: "common",
  category: {
    mining: {
      target: {
        block: "minecraft:stone"
      }
    }
  }
});

Method 2 — External (no engine modification required)

Other add-ons can register achievements at runtime by sending a script event. The engine listens for meritum_engine:register_achievement and processes the payload automatically.

import * as MC from "@minecraft/server";

const achievements = {
  "myaddon.my_achievement": {
    name: "My Achievement",
    description: "Do something.",
    rarity: "common",
    category: {
      eventual: { target: { beforeTime: 3 } }
    }
  }
};

MC.world.afterEvents.worldLoad.subscribe(() =>
  MC.system.sendScriptEvent(
    "meritum_engine:register_achievement",
    JSON.stringify(achievements)
  )
);

The payload must be a valid JSON object where each key is the achievement ID and each value is its configuration. No imports from the engine are required.

Once an achievement is registered and its condition is met:

1. The achievement is unlocked.
2. The player receives a notification.
3. Rewards (if configured) are granted.
4. The achievement is stored permanently.

Achievement Storage System

Player progress is stored using Dynamic Properties.

Each player has a serialized JSON object saved under:

meritum:achievements

Example stored structure:

{
  "example.mine_block": true,
  "example.kill_zombie": true
}

The engine uses an in-memory cache to avoid repeatedly reading dynamic properties during gameplay.

Changes are periodically written back to the player.

This design improves performance while maintaining persistent data.

Achievement Detection System

The engine monitors several gameplay events to determine when achievements should be unlocked.

Supported categories include:

• Mining Achievements
• Combat Achievements
• Item Obtaining Achievements
• Eventual Achievements

Each achievement can belong to one or more categories simultaneously. When multiple categories are defined, the logic field controls the unlock behavior:

• "or" (default) — unlocks when any category condition is met.
• "and" — unlocks only when all category conditions are met.

registerAchievement("example.warrior", {
  name: "Warrior",
  description: "Wear iron armor and kill a zombie.",
  rarity: "uncommon",
  logic: "and",
  category: {
    obtaining: {
      target: {
        armor: { head: "minecraft:iron_helmet", chest: "minecraft:iron_chestplate",
                 legs: "minecraft:iron_leggings", feet: "minecraft:iron_boots" }
      }
    },
    combat: {
      target: { origin: "attacker", attacker: "minecraft:player",
                victim: "minecraft:zombie", isDead: true }
    }
  }
});

Mining Achievements

Triggered when a player breaks a block.

Conditions may include:

• Block type (single ID or list)
• Block exceptions (exclude subtypes by substring)
• Tool used
• Tool durability

Example:

category: {
  mining: {
    target: {
      block: ["minecraft:diamond_ore", "minecraft:deepslate_diamond_ore"]
    }
  }
}

Combat Achievements

Triggered when an entity takes damage.

Conditions may include:

• Victim entity type
• Attacker entity type
• Which entity owns the achievement (origin: "attacker" or "victim")
• Minimum damage dealt
• Weapon used
• Whether the victim died

Example:

category: {
  combat: {
    target: {
      origin: "attacker",
      victim: "minecraft:zombie",
      attacker: "minecraft:player",
      isDead: true
    }
  }
}

Item Obtaining Achievements

Triggered when the player has specific items in their inventory or equipment slots.

Conditions may include:

• Inventory items (single or multiple)
• Minimum item counts
• Equipped armor pieces

Both item and armor can be required simultaneously within the same obtaining target.

Example:

category: {
  obtaining: {
    target: {
      item: [
        { id: "minecraft:diamond", min: 3 }
      ]
    }
  }
}

Eventual Achievements

Triggered after the player remains in a certain condition for a set amount of time. Checked every 5 ticks.

Conditions may include:

• beforeTime — time in seconds the player must remain in the condition
• dimension — restricts detection to a specific dimension (e.g. "minecraft:nether")
• nextEntity — requires a specific entity type within a radius; resets the timer if the entity moves out of range

Example use cases:

• Joining the world for the first time
• Staying in a dimension for a period of time
• Remaining near a specific entity

Example:

category: {
  eventual: {
    target: {
      beforeTime: 30,
      dimension: "minecraft:nether",
      nextEntity: {
        entity: "minecraft:elder_guardian",
        radius: 5
      }
    }
  }
}

Rarity System

Achievements are categorized using configurable rarity tiers.

Each rarity defines:

• Display color
• Unlock sound
• Sound pitch
• Sound volume

Default rarity tiers included:

• Common
• Uncommon
• Rare
• Epic
• Legendary
• Divine

Example configuration:

rare: {
  color: "§e",
  sound: "random.levelup",
  volume: 1,
  pitch: 0.9
}

When an achievement is unlocked, the rarity determines how the notification is displayed.

⚠️ Rarity does not affect the difficulty of an achievement. It only changes visual and sound effects.

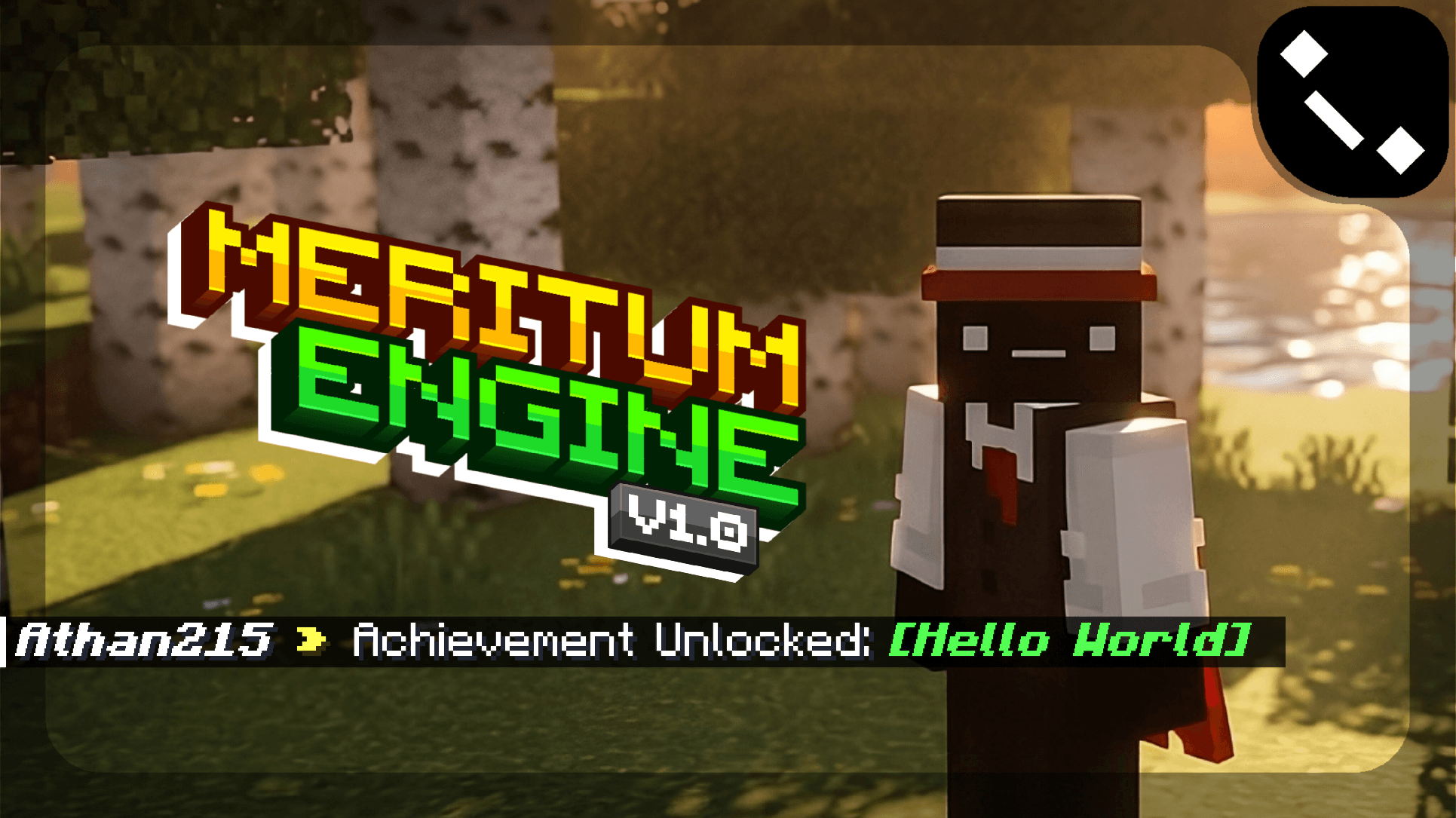

Achievement Notifications

When a player unlocks an achievement, the engine:

1. Sends a formatted global message.
2. Plays a rarity-based sound effect.
3. Stores the achievement in player data.

Example notification format:

The formatting can be customized in the engine configuration.

Rewards System

Achievements may optionally grant rewards.

Supported reward types include:

• Items
  Item rewards are spawned at the player's location.

Example:

rewards: {
  give: [
    { item: "minecraft:diamond", quantity: 2 }
  ]
}

• Experience
  Experience points are granted gradually over multiple ticks.

Example:

rewards: {
  xpReward: 5
}

XP rewards are internally multiplied by 5 and delivered as individual experience increments, one per tick.

Command System

Meritum Engine includes a modular command system designed for both players and administrators.

Commands are separated by purpose and use a shared internal command builder, making the system easier to maintain and extend.

Several commands support built-in pagination to prevent chat overflow when listing large numbers of achievements.

Player Commands

• /achmenu
  Opens the achievements interface menu.
• /achlist [page]
  Displays a paginated list of all registered achievements.
• /achsearch <keyword> [page]
  Searches achievements by name or identifier.
• /achinfo <achievementId>
  Displays detailed information about a specific achievement.
• /achprogress [player]
  Shows how many achievements a player has unlocked.

Administrative Commands

• /achgive <player> <achievementId>
• /achrevoke <player> <achievementId>
• /achreset <player>

User Interface

The engine includes a UI panel that allows players to:

• Browse achievements
• View descriptions
• Check unlock status
• See reward information

The interface also supports pagination (configurable in the files).

UI text and formatting can be customized in the configuration file.

Performance Considerations

To reduce performance overhead, the engine:

• Uses cached player achievement data
• Writes data to dynamic properties periodically (~every 10 seconds)
• Runs detection checks at controlled intervals

The system is designed to remain lightweight even when handling large numbers of achievements.

However, developers should avoid registering extremely large numbers of achievements with complex detection conditions.

Important Considerations

• This project is currently under active development.
• Features may change and occasional bugs may occur while the engine evolves.
• Achievements are not connected to Xbox Live achievements.
• The system operates independently within the add-on environment.
• Achievement IDs must remain unique across all add-ons using the engine.
• The add-on can also be configured directly through the config.js file.
• Multi-category progress using logic: "and" is not persisted between sessions — if the player disconnects before completing all categories, progress resets.

Usage & Redistribution

Allowed

• Using Meritum Engine as a dependency in your own add-ons or projects.
• Configuring the engine for personal or project use.
• Distributing your own add-on that uses Meritum Engine.

Not Allowed

• Reuploading or redistributing the engine itself without permission.
• Publishing modified versions of the engine or its configuration without permission.
• Reposting this project on other platforms instead of linking to the official page.

Credits

• If you use Meritum Engine in a public project, giving credit to the original author is highly appreciated.
• When sharing the engine, please link to the official project page instead of reuploading the files.

Languages & Credits

• 🇺🇸 English
• 🇧🇷 Português (BR)
• 🇵🇹 Português (PT)
• 🇪🇸 Español
• 🇫🇷 Français
• 🇷🇺 Русский
• 🇮🇩 Bahasa Indonesia
• 🇯🇵 日本語
• 🇰🇷 한국어
• 🇨🇳 中文

• Engine Developer: Athan213

Leave your feedback so that the engine can continue improving in the future ;)
