Roofwright
- By
Whole roofs in one click: detects your building's outline from the wall tops and builds gable, hip, mansard, gambrel, cone and more from stairs and slabs, hips and valleys right. Preview, undo. Server-side.
Roofwright
Whole roofs from the tops of your walls, in one click.

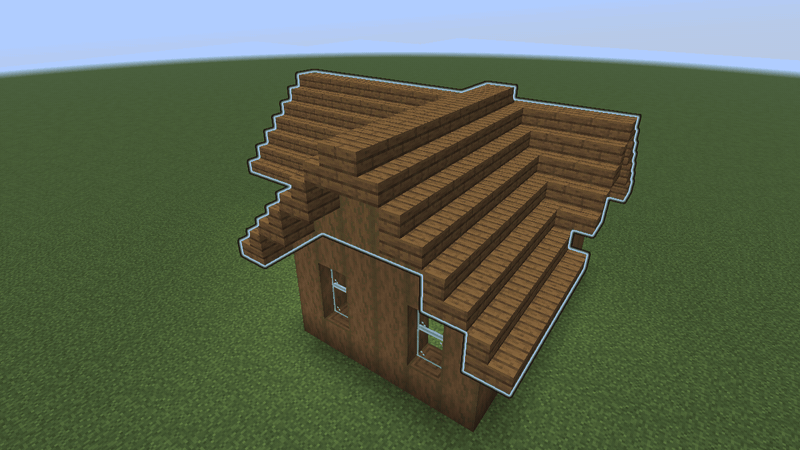

Roofs are the slow part of every build: hundreds of stairs and slabs, and hips, valleys and corners that are easy to get wrong. Roofwright builds the whole roof for you. Right-click the top of a wall with the wand: it finds the building's outline, shows you a ghost of the roof, and builds it when you sneak-click. Undo puts everything back.
Server-side only. Players join with a vanilla client.
Features
- Finds the outline itself. One click on a wall top: rectangles, L, T and U shapes and any other right-angled outline. No marking corners by hand.

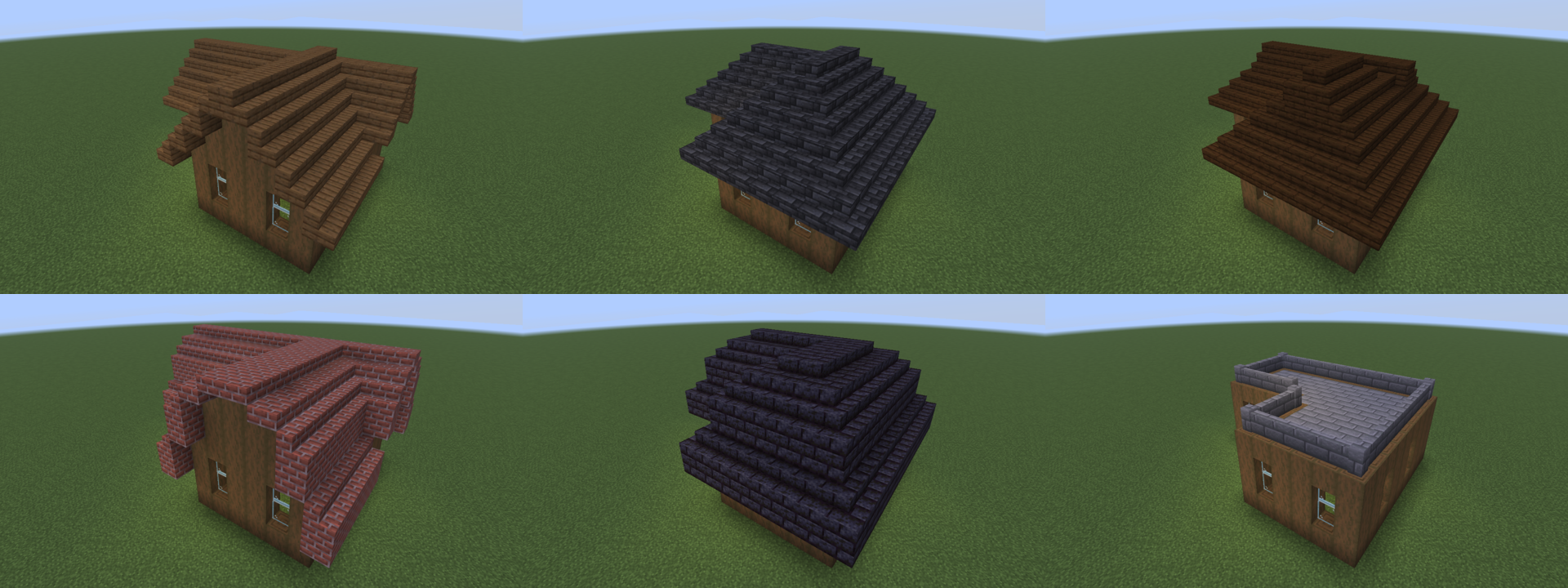

- Ten styles: gable, hip, dutch gable, gambrel, mansard, pyramid, shed, flat with a parapet, cone and dome.
- Three pitches (1:2 with slabs, 1:1 with stairs, 2:1 steep) and an overhang of 0 to 3 blocks.
- Corners done right. Hips get outer corner stairs, valleys get inner corners, and every stair gets the exact shape Minecraft's own rule gives it, so nothing reshapes after it is placed.

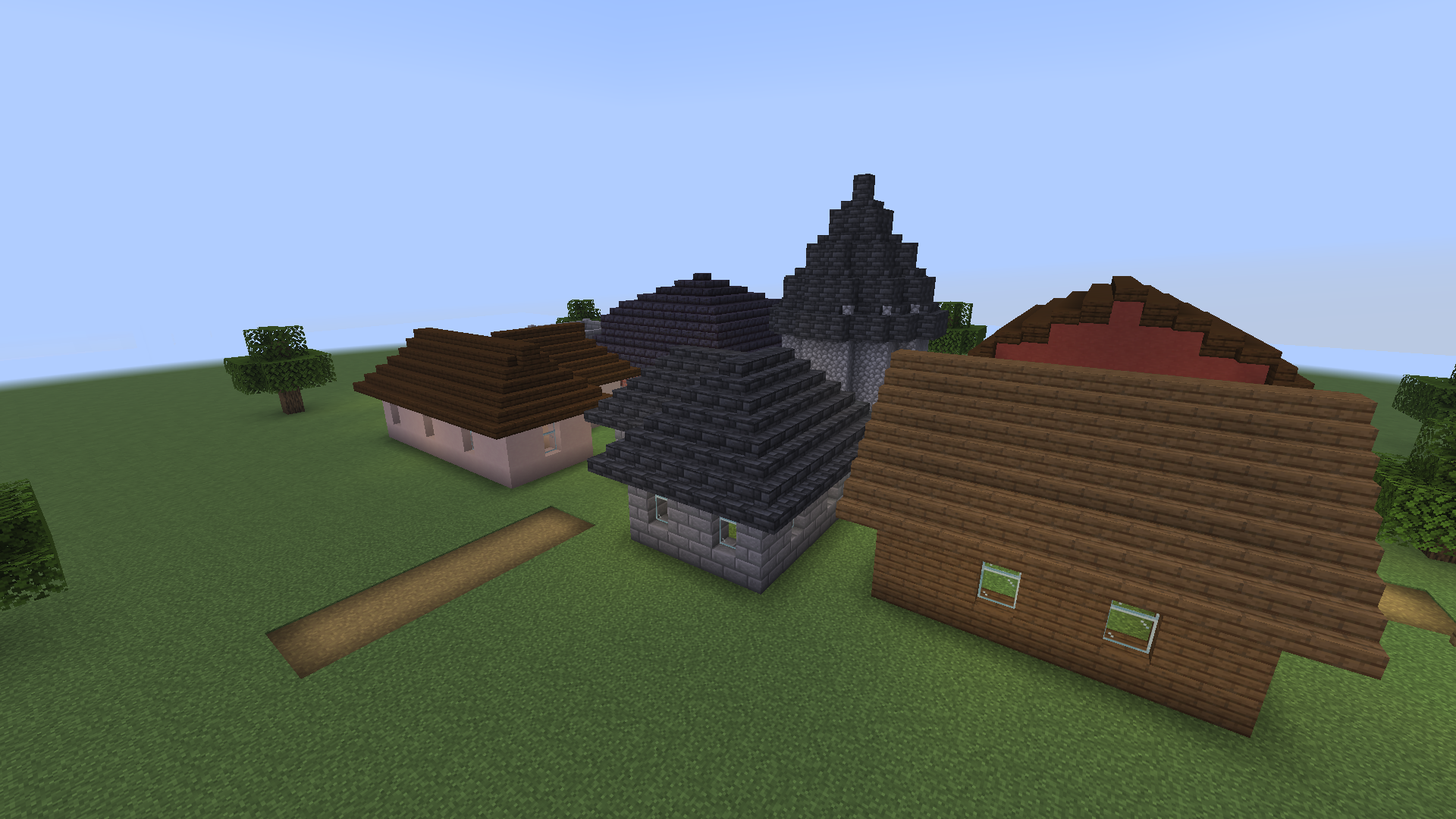

- Wings meet properly. On L and T houses the smaller wing's ridge runs into the main roof and ends in a valley; a small bay gets its own little cross gable.
- Gable walls filled with the block your walls are made of.
- Any material: any member of a block family (oak, spruce, deepslate tiles, bricks, blackstone...), stair-like blocks from other mods such as Macaw's Roofs, or three blocks of your choice.

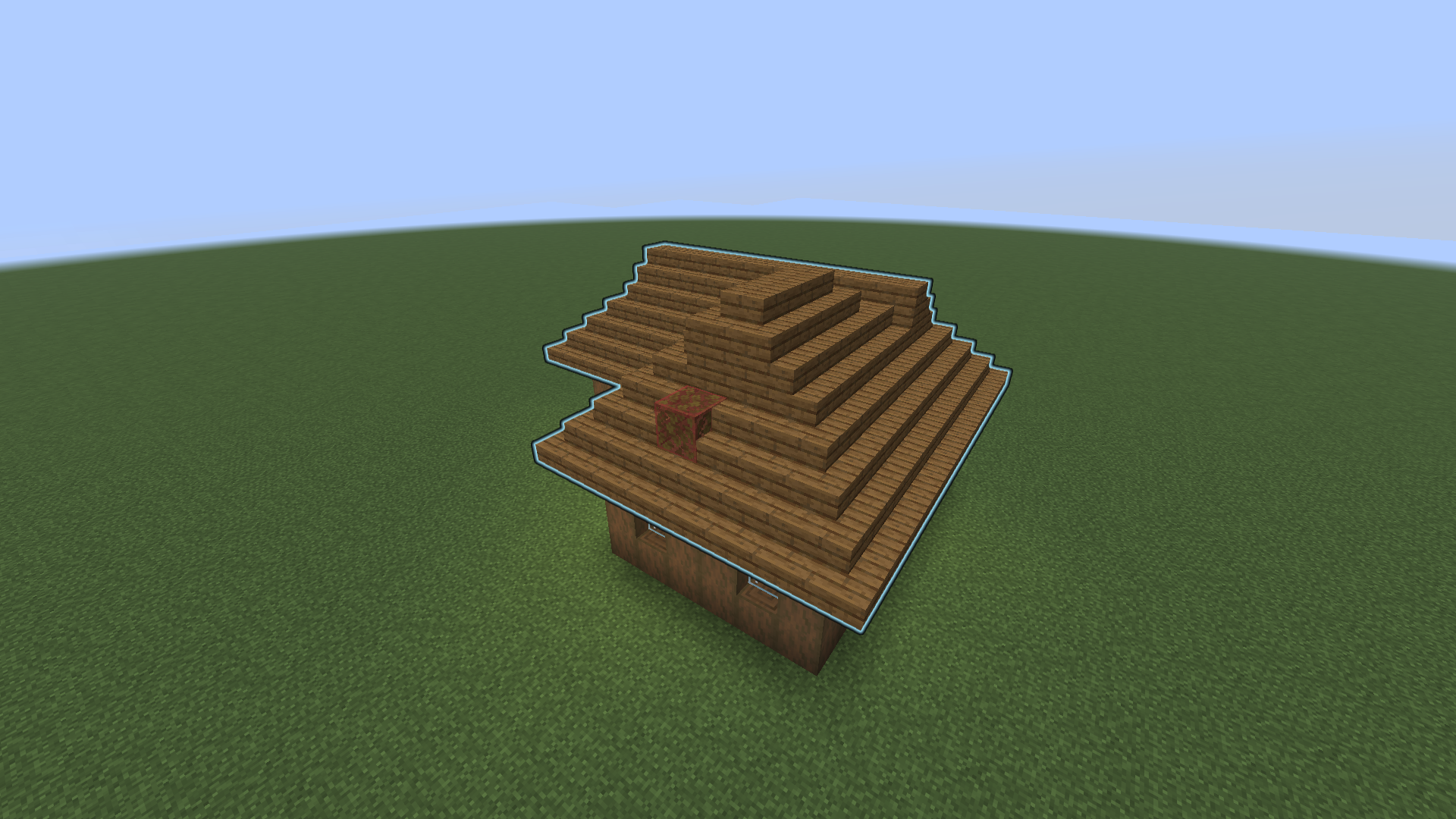

- Ghost preview that only you can see; blocks in the way show in red.
- Undo and redo that leave alone anything someone changed in the meantime.
- Safe on servers: fills air only unless you ask for
force(which still never replaces chests or bedrock), respects claim mods (Common Protection API: GOML, Flan and others, including their break rights), spawn protection and adventure mode, never builds with portals, containers, fluids, TNT or other unsafe blocks (#roofwright:forbidden, extendable with a data pack), and places a budgeted number of blocks per tick.
How to use it
/roof wandgives you the Roofwright Wand.- Right-click the top block of a wall. The outline is detected and a ghost roof appears.
- Change anything and the ghost updates:
/roof style hip,/roof pitch steep,/roof overhang 2,/roof material deepslate_tiles. Left-click cycles the style, sneak + left-click the pitch. - Sneak + right-click (or
/roof place) builds it./roof undotakes it back.
What you see in chat, from the capture run behind these screenshots:
Hip, 1:1, overhang 1 roof in spruce_stairs: 123 blocks over 79 columns. Sneak + right-click with the wand or /roof place to build.
Gallery
Every screenshot is a real capture from the game client, made by the project's capture test.
Commands
/roof and the alias /roofwright are the same command.
| Command | What it does |
|---|---|
wand |
Gives you the wand |
detect [pos] |
Detects the building whose wall top you look at (or at pos) and previews its roof |
select <from> <to>, select add <from> <to> |
Selects rectangles by hand |
style <style> |
gable, hip, dutch_gable, gambrel, mansard, pyramid, shed, flat, cone, dome |
pitch low\|normal\|steep |
1:2, 1:1 or 2:1 |
overhang <0-3> |
How far the roof reaches past the walls |
material <block> [<slab> <full>] |
Material from any member of a block family, or three blocks |
ridge auto\|x\|z, shed <side>, ridgecap slab\|full, gable match\|<block> |
Fine tuning |
preview |
Shows the ghost again |
place [force] |
Builds the roof; force also replaces plain blocks in the way |
undo, redo, cancel |
Takes your last roof back, puts it back, or stops one still going up |
info, help, reload |
Your settings and history, the command list, re-read the config |
For server owners
- Permissions: with a permissions mod such as LuckPerms, grant
roofwright.use,roofwright.force,roofwright.unlimitedandroofwright.admin. Without one, the operator levels fromconfig/roofwright.jsonapply (defaults 2, 2, 3, 3). Holding a wand grants nothing; every click is checked. - Limits in
config/roofwright.json:maxSpan(widest outline, 96),maxBlocksper roof (30,000),blocksPerTick(2,000) andmillisPerTick(5) shared by everyone's roofs,historySize(10),previewLimit(3,000),previewSeconds(300) andwandCooldownTicks(5). Applied with/roof reload. Grantroofwright.useto trusted builders. - Performance: planning a 256 by 256 hip roof takes about 18 ms; while a 16,900-block roof goes up, the worst tick stays at the 5 ms budget (measured on an Apple M-series Mac with the repository's benchmark scripts).
- History and previews live in memory; a server restart clears them.
Install
Needs Minecraft 26.3, Fabric Loader 0.19.5 or newer, Fabric API and Java 25. Put the jar and Fabric API in the mods/ folder of your server or your Fabric 26.3 profile.
Links
- Website: https://razekteixeira.github.io/roofwright/
- Source and issues: https://github.com/razekteixeira/roofwright
Open source under the Apache License 2.0. Not an official Minecraft product; not approved by or associated with Mojang or Microsoft.
