Lorian’s Arch Orbit

Building-assistance tools for creative builders, map makers, and modpack teams.

Lorian’s Arch Orbit

This is a project by AI. If you mind this, please do not use this mod.

The color wheel is moving on its own w~

A building-assistance mod for Creative builders, map makers, and modpack teams. It supports Minecraft 26.2 on Fabric and NeoForge; major features can be toggled independently and hot-reloaded.

Features

Press O to open the configuration screen or P to open the editor. All keybindings can be changed in Minecraft's Controls settings.

Except for interaction reach modification, which requires server support, all features are client-side.

Primary / Secondary / Temporary Item Color Wheels

  • Hold R to open the primary wheel; quickly double-tap and hold the second press for the secondary wheel, or triple-tap and hold the third press for the temporary wheel. Scroll to switch held items, then release to close
  • Choose from three group presets: block type, block family, and color. You can also edit groups, reorder items, and share them through JSON files or share codes
  • Wheels adapt to the window size, with configurable target positions and indicator styles; the temporary wheel can use gradient results directly

See the Color Wheel Guide for details.

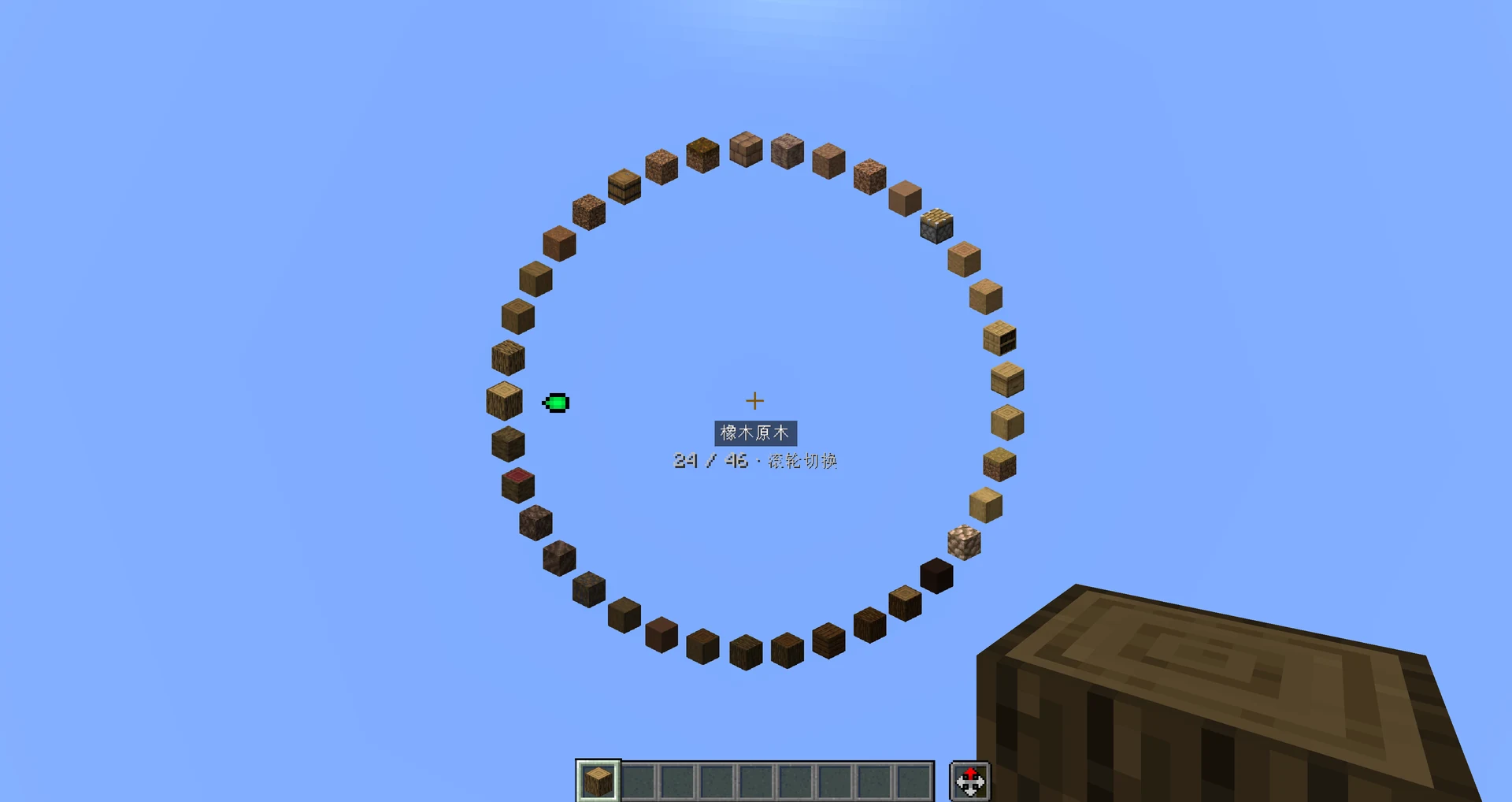

Item color wheel

Block Gradients

  • Choose colors or blocks as stops to generate a light-to-dark, warm-to-cool, or custom block gradient
  • Select textures from different block faces, replace and lock individual results, and inspect tiled textures or compare results
  • Apply results to a temporary wheel, inventory, or permanent wheel group; gradient parameters and candidate palettes can also be imported and exported separately

See the Gradient Guide for details. Color data comes from HueBlocks and needs to be downloaded initially; valid cached data can be used afterward.

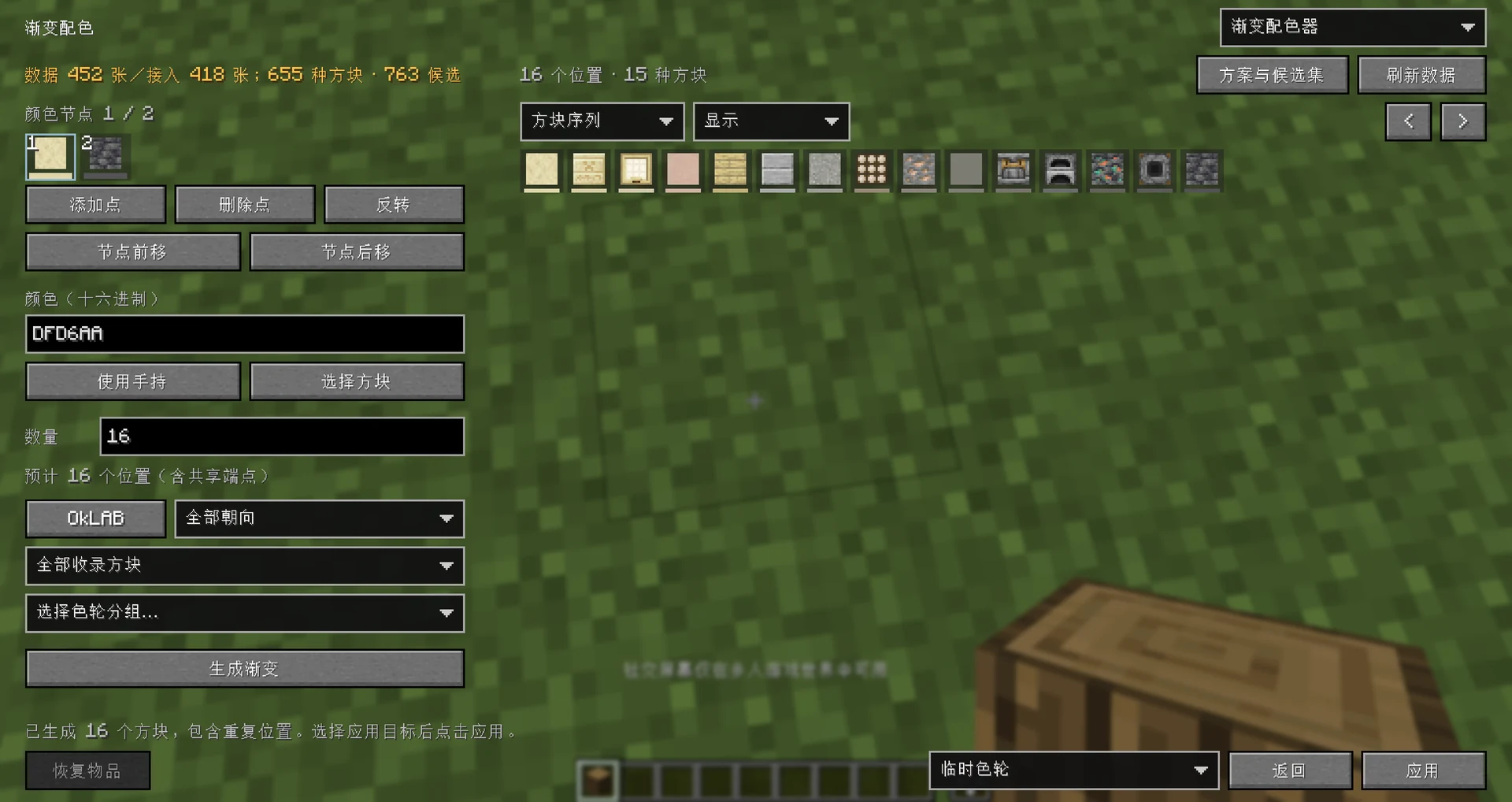

Color stop example

Smart Middle-Click Pick Block

  • A short middle-click keeps vanilla Pick Block behavior; holding for about 100 ms opens a candidate wheel for nearby blocks
  • Choose between adjacent, range, and context modes; context mode is enabled by default

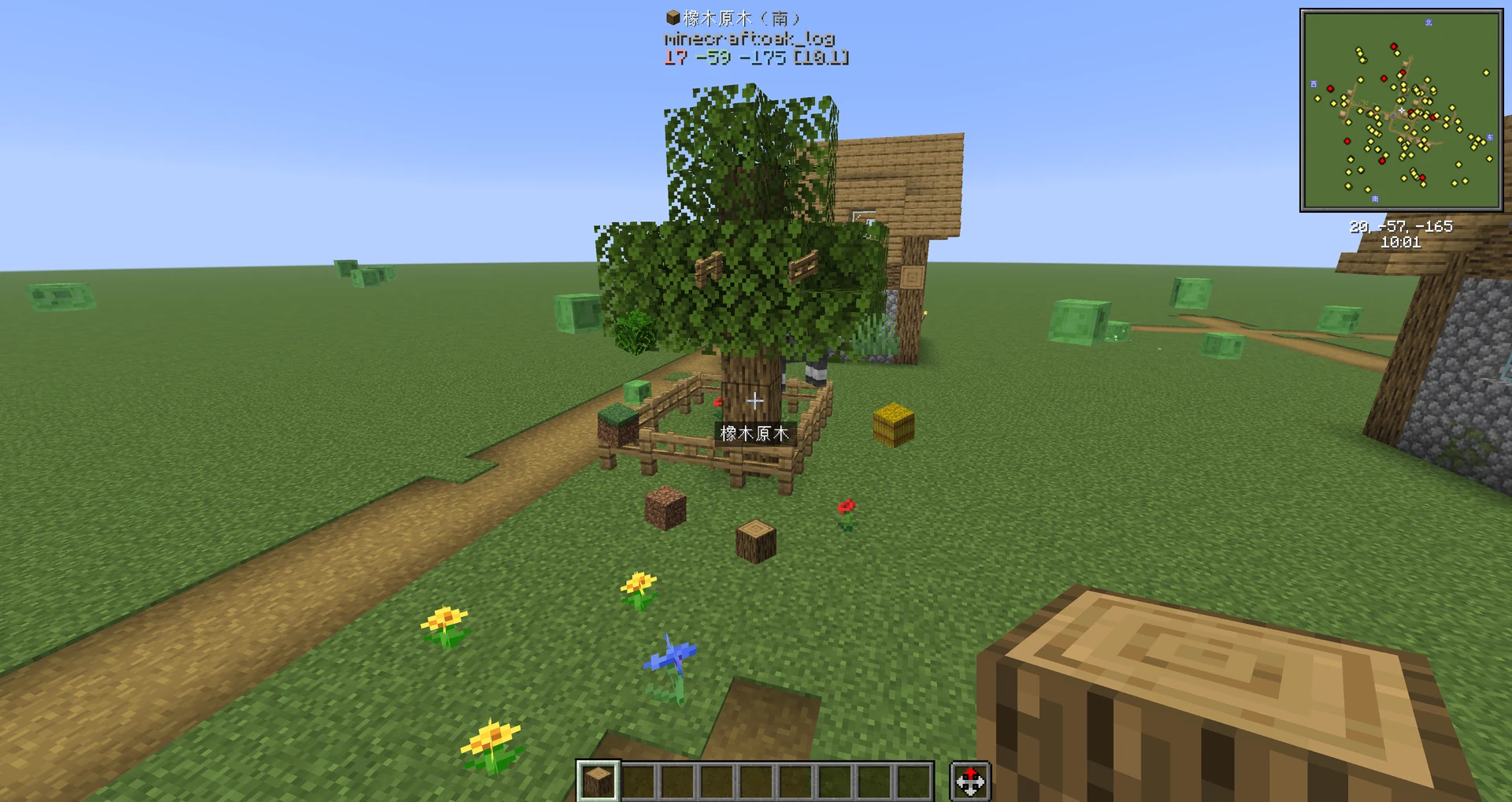

Smart pick candidate wheel

Interaction Reach Modification

  • Hold G and scroll to adjust interaction reach from 5 to 128 blocks; disabled by default
  • Requires this mod on both the client and server, with authorization in the server configuration

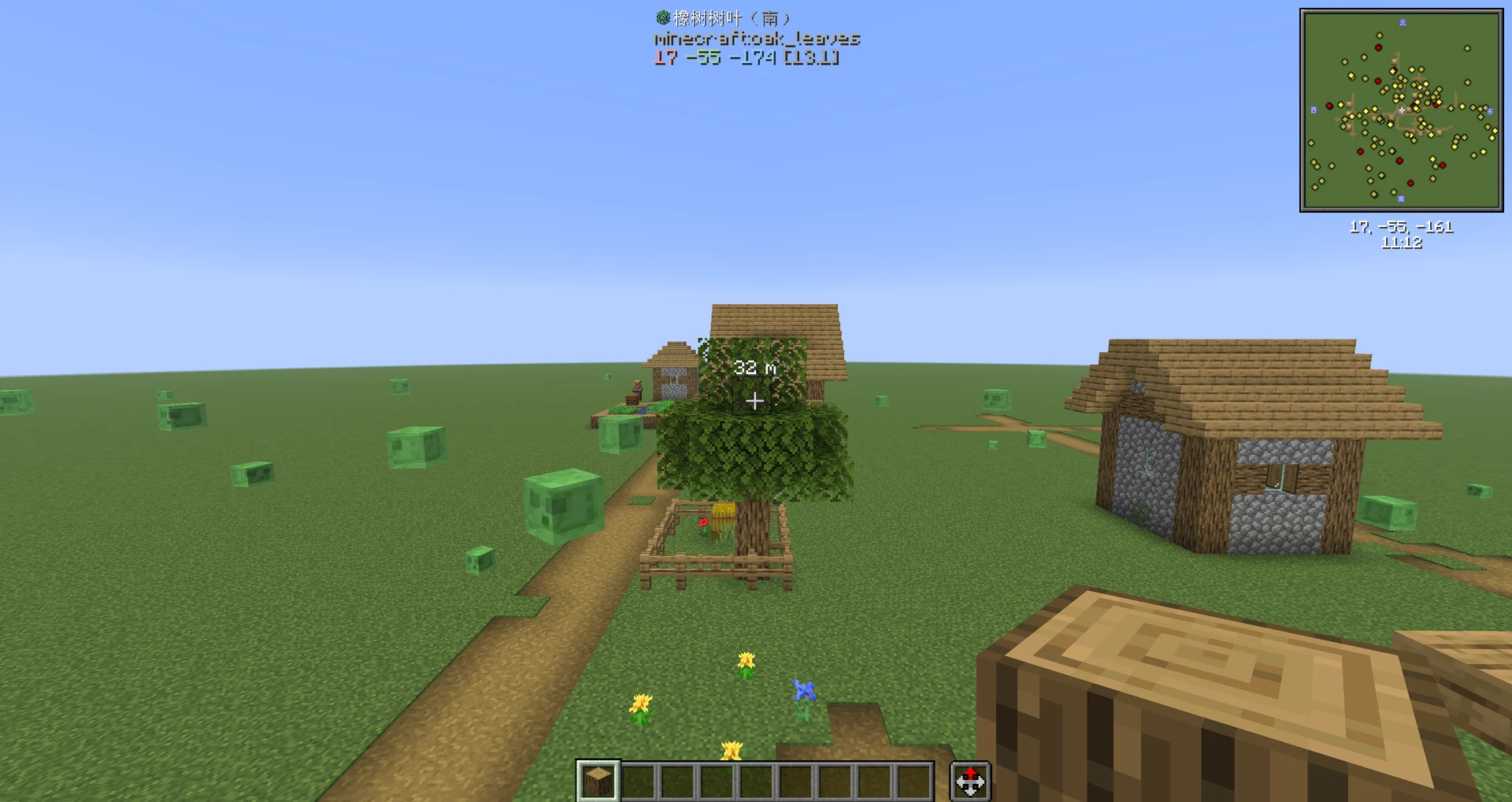

Interaction reach adjustment

Connected-Texture Fixes

  • Fills missing joining faces on standard walls, glass panes, beds, doors, chests, and extended pistons, plus the four narrow Nether Portal edge faces and the five non-top End Portal faces
  • Each fix can be toggled independently, including the exposed joining face left when one double-chest half is removed with block updates disabled

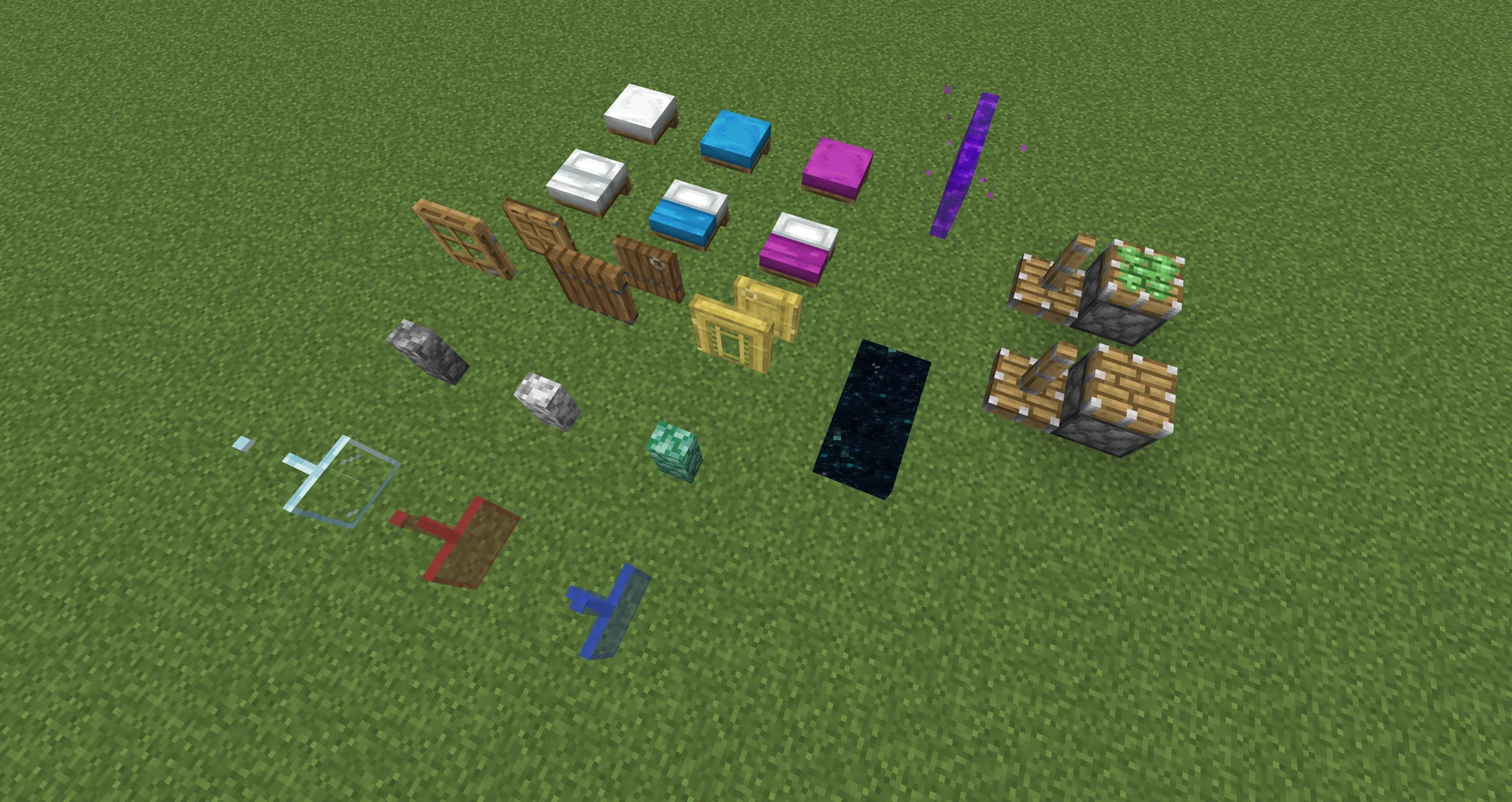

Connected-texture fixes

Invisible-Block Display

  • Press V to toggle barrier and light-block display together; the types can be filtered in the configuration

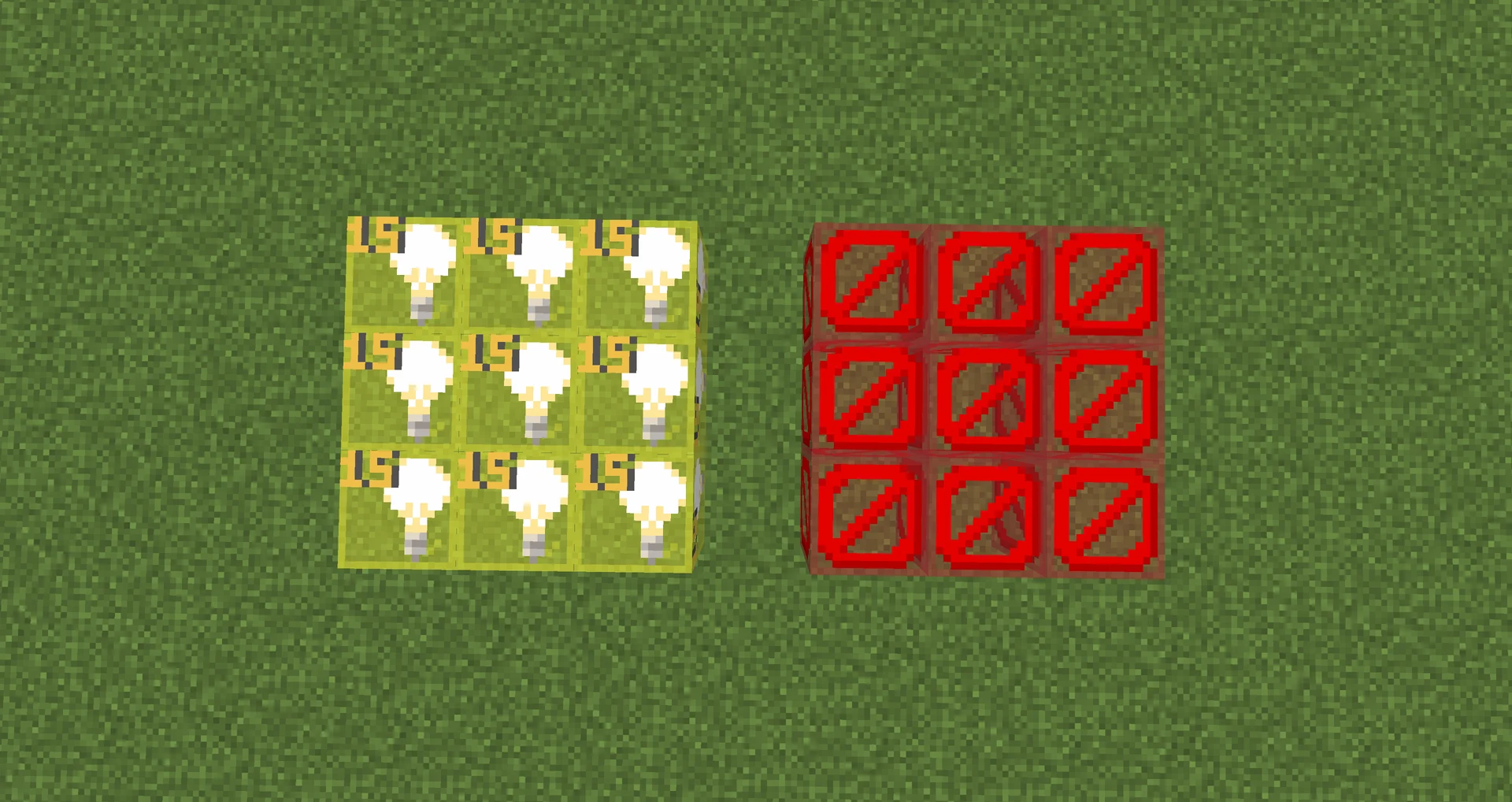

Barrier and light-block display

Dependencies

Fabric

NeoForge

Fabric includes optional Radial compatibility: when both wheels share a key, this mod takes priority if its wheel can open; otherwise, Radial handles the key. Separate bindings also work.

Documentation

English

中文 / Chinese

The configuration, data, migration, and update documents above are currently available in Chinese.

TODO

  1. Structure-block display
  2. Custom tool & command wheel

Credits

  • LotTweaks: behavioral reference for color wheels, smart pick, and interaction reach.
  • Visible Barriers: behavioral reference for invisible-block display.
  • HueBlocks: reference for gradient functionality and source of block color data.
  • The lovely Jiu Hu (酒狐).

License

MIT License.
