FerricOxide

Native WebView UI for Minecraft, driven by Rust.

FerricOxide renders modern web UI (HTML/CSS/JS) inside Minecraft by calling the operating system's native WebView through a thin Rust JNI bridge — no bundled browser engines, no embedded Chromium. It is a lightweight, high-performance, cross-platform GUI foundation for Minecraft mod developers.

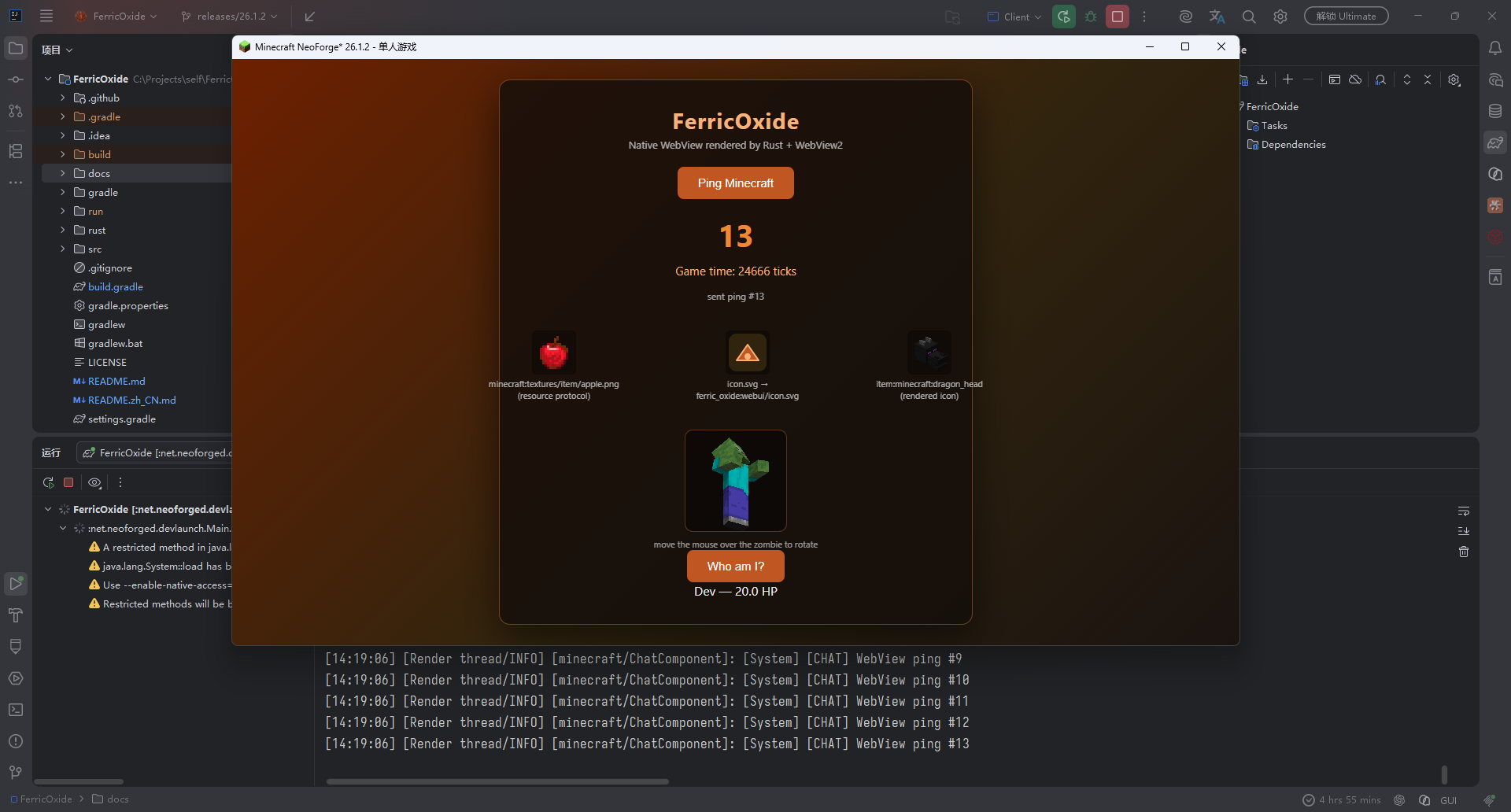

Preview

How it works

┌─────────────────────────── Minecraft (Java) ───────────────────────────┐
│  WebUi (public API) ──► NativeWebView (JNI stubs)                     │
└───────────────────────────────────┬────────────────────────────────────┘
                                    │ JNI calls (fire-and-forget commands)
┌─────────────────────────── Rust (cdylib) ─────────────────────────────┐
│  ferric_oxide_native: jni + wry + tao                                  │
│  dedicated event-loop thread owns every WebView/window                 │
└───────────────────────────────────┬────────────────────────────────────┘
                                    │ OS native WebView
        Windows: WebView2 (Chromium) │ macOS: WKWebView    Linux: WebKitGTK

• Java exposes a small, mod-developer-friendly API (WebUi), backed by thin JNI stubs (NativeWebView).
• Rust (rust/, crate ferric_oxide_native) uses wry to drive the platform's native WebView. All window/WebView work happens on one dedicated event-loop thread; JNI calls become messages sent through an EventLoopProxy, so no game thread is ever blocked.
• Embedding: on Windows the WebView is created as an HWND child of the Minecraft window (WebViewBuilder::build_as_child), so the web UI is pinned to the game window and follows its size. Other platforms currently fall back to a standalone window.
• Two-way bridge: events and queries flow in both directions over one JSON protocol. Java uses WebUi.bridge(), the page uses ferric.emit / on / call / handle — the runtime is injected before any page script, so no feature detection is needed. See docs/webui-bridge.md.

Requirements

• Minecraft / NeoForge dev environment (see gradle.properties for the pinned versions)
• JDK 25
• Rust toolchain (cargo, stable) — needed to build the native library locally
• Node.js 22+ — runs the page-side bridge tests during ./gradlew check
• Windows: WebView2 Runtime (preinstalled on Windows 11 / modern Edge)
• Linux: WebKitGTK 4.1 and D-Bus runtime libraries (for example, libwebkit2gtk-4.1-0 and libdbus-1-3 on Ubuntu)

Building

./gradlew build

A normal local build invokes cargo build --release via the buildRustNative task, copies the host library into the jar at natives/<platform>/<arch>/..., and configures dev runs with the ferricoxide.native.path system property. The NativeLoader first honours that property and otherwise extracts the matching library from the mod jar at runtime.

The reusable GitHub Actions build compiles these eight native targets in parallel and packages them into one mod JAR:

The packaging job supplies the merged resource directory with -PprebuiltNativesDir=/path/to/natives. In this mode Gradle copies every prebuilt native and does not run Cargo; without the property, local and development-run behavior remains unchanged.

CI versions and publishing

The baseline version is mod_version in gradle.properties. CI passes an override to Gradle, so the JAR filename and the embedded NeoForge metadata always carry the same version:

• A push that changes build inputs on releases/** publishes an alpha to Modrinth and CurseForge as <mod_version>+build.<GitHub run number>, for example 0.0.1+build.123.
• Pushing a v<mod_version> tag, for example v0.0.1, validates that it exactly matches gradle.properties, then publishes a stable release to Modrinth, CurseForge, and GitHub.
• Pull requests only run the eight-target build and test checks; they cannot publish.

Repository secrets required for publishing are MODRINTH_TOKEN and CURSEFORGE_TOKEN. The workflow fails visibly if either platform rejects an upload; it never silently skips a release.

The x86 libraries are built and packaged for completeness, but current Minecraft, JDK 25, and LWJGL distributions generally do not provide a complete 32-bit runtime. Loading an x86 native still requires an x86 JVM and an otherwise architecture-compatible game environment. Packaging the Linux libraries also does not bundle their WebKitGTK, GTK, or D-Bus system dependencies.

Using the API

Java side — payloads are plain records, converted with Gson:

import dev.anvilcraft.oxide.ferric.webui.WebUi;

record Clicked(int value) {}
record Data(int foo) {}
record PlayerInfo(String name, float health) {}

// Load your page from the mod's assets, embed it into the Minecraft window:
WebUi ui = WebUi.embedded(
    "My Mod UI", "my_mod", "webui/index.html",
    minecraft.getWindow().getWidth(),
    minecraft.getWindow().getHeight()
);

ui.bridge()
    // JS -> Java event (handlers always run on the render thread):
    .on("my_mod.clicked", Clicked.class, clicked -> doSomething(clicked.value()))
    // JS -> Java query — whatever you return is sent back to the page:
    .handle("my_mod.player", Void.class, ignored -> new PlayerInfo("Steve", 20.0F));

// Java -> JS event:
ui.bridge().emit("my_mod.data", new Data(42));

// Java -> JS query:
ui.bridge().call("my_mod.form", null, FormValues.class).thenAccept(this::save);

// WebUi is AutoCloseable; close() destroys the native window (also reclaimed by GC).
ui.close();

Page side — the mirror image, no setup required:

ferric.emit('my_mod.clicked', {value: 42});
const player = await ferric.call('my_mod.player');

ferric.on('my_mod.data', (data) => render(data.foo));
ferric.handle('my_mod.form', () => collectFormValues());

// Game resources, without worrying about the platform's URL scheme:
img.src = ferric.resource('item/minecraft:apple', {size: 48});

Open a standalone (non-embedded) window with WebUi.window(...) instead. The raw lower-level API (NativeWebView.Builder, MessageHandler, CreationCallback) is available under dev.anvilcraft.oxide.ferric.webui for advanced use.

Demo

Run /ferric ui demo in-game to open the bundled demo UI. It exercises every direction of the bridge: it pings the game chat (JS event), queries the player's name and health with Who am I? (JS query), receives the world time once per second and rendered entity frames (Java events). Press Esc in the WebView to close it and return mouse control to Minecraft.

Set FERRICOXIDE_AUTO_OPEN=1 to open the demo UI automatically after launch (used for smoke-testing).

Project layout

rust/                          Native JNI bridge (wry + tao + jni)
  src/lib.rs                   JNI entry points, event-loop thread, embedded/standalone WebViews
src/main/java/dev/anvilcraft/oxide/ferric/
  FerricOxide.java            Mod entry point
  client/FerricOxideClient.java  Client command + demo UI wiring
  webui/WebUi.java            Public high-level API
  webui/NativeWebView.java    Low-level JNI wrapper
  webui/NativeLoader.java     Library loading (system property / jar extraction)
  webui/bridge/               Two-way event/query bridge (WebBridge + protocol)
src/main/resources/assets/ferric_oxide/webui/
  bridge.js                    Page-side bridge runtime (injected before page scripts)
  demo.html                    Demo page
src/test/java/                 JUnit tests for the Java bridge half
src/test/js/bridge.test.js     Node tests for the page-side bridge half
docs/webui-bridge.md           Bridge protocol and API design

License

GNU LGPL 3.0
