ComputerCraft Wake Nodes

ComputerCraft Wake Nodes is a Forge mod for Minecraft 1.20.1 that adds a small chunk-loading network for CC: Tweaked (ComputerCraft) computers, particularly useful for automation setups.

It introduces three ComputerCraft peripherals:

wake_node: attached to a ComputerCraft computer and registered under a string ID, effectively serving as the chunk loader.
wake_node_advanced: an upgraded version of wake_node that lets the user choose the loaded area (1×1, 3×3, or 5×5 chunks).
wake_controller: used by another computer to list, load, unload, and inspect registered nodes.

The main use case is waking distant computer setups long enough for their chunk to load and tick, allowing their startup logic to run.

It also adds the Wake Chip, a crafting component used by the other blocks.

If Create is installed, custom Create recipes are provided for the Wake Chip, Wake Node, Advanced Wake Node, and Wake Controller.

Features

Register remote wake points by attaching a Wake Node to a ComputerCraft computer.
Load the remote computer's chunk on demand from a Wake Controller.
Load chunks permanently until manual unload, or temporarily with an automatic timeout.
Persist node registrations across server restarts.
Keep chunk loading transient: loaded chunks are not restored automatically after a restart.
Expose a simple ComputerCraft API for both blocks.

Requirements

Minecraft 1.20.1
Forge 47.2.0+
Java 17
CC: Tweaked 1.108.4+

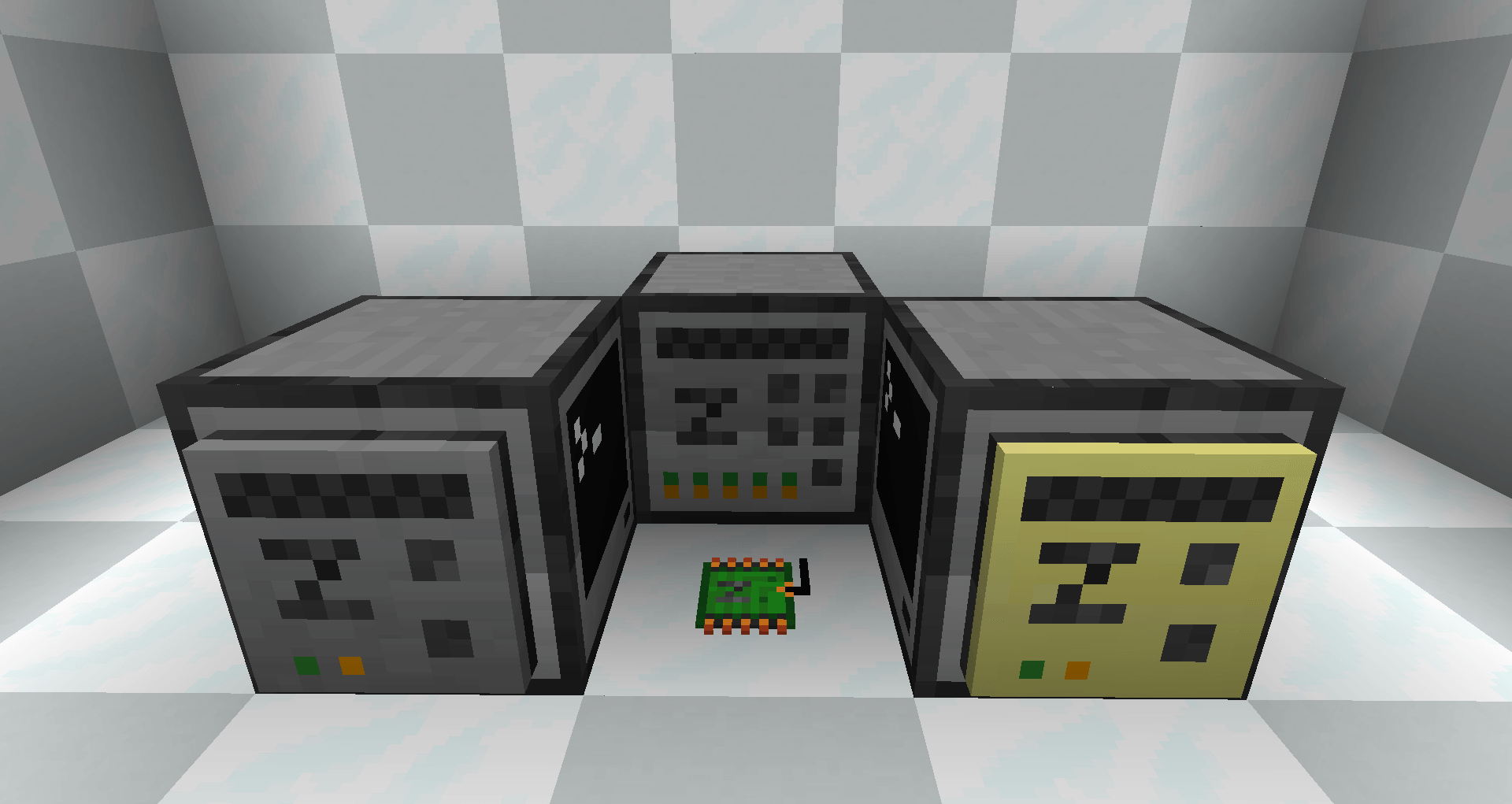

Added Content

Wake Chip

Crafting component used by the other blocks.

Recipe:

Wake chip recipe

Creative tab: Ingredients

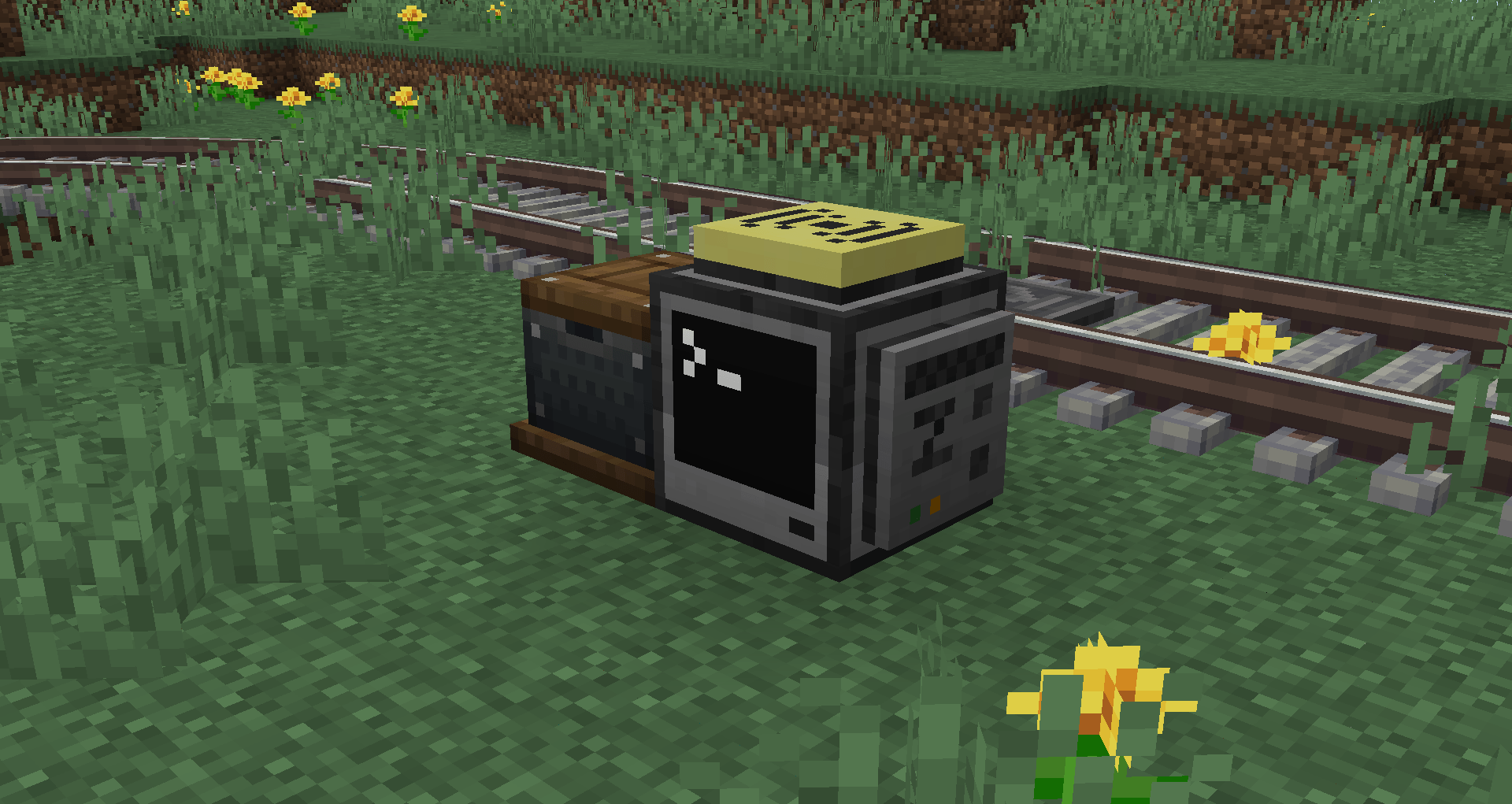

Wake Node

A thin peripheral block that must be placed directly against a CC: Tweaked computer block.

What it does:

exposes the wake_node peripheral type
stores a node ID assigned from Lua
registers the attached computer's dimension and chunk in a persistent registry
breaks automatically if its supporting computer is removed

Important placement rule:

placement is refused unless the support block is a ComputerCraft computer block

Recipe:

Wake Node recipe

Creative tab: Functional Blocks

Advanced Wake Node

An upgraded Wake Node that lets the user choose the loaded area around the attached computer:

1×1 — 1 chunk (same as a basic Wake Node)
3×3 — 9 chunks
5×5 — 25 chunks

It inherits all features of the basic Wake Node and adds setRange(), getRange(), and listAvailableRanges() methods.

Recipe (same shape as Wake Node, but with netherite instead of iron):

Advanced Wake Node recipe

Creative tab: Functional Blocks

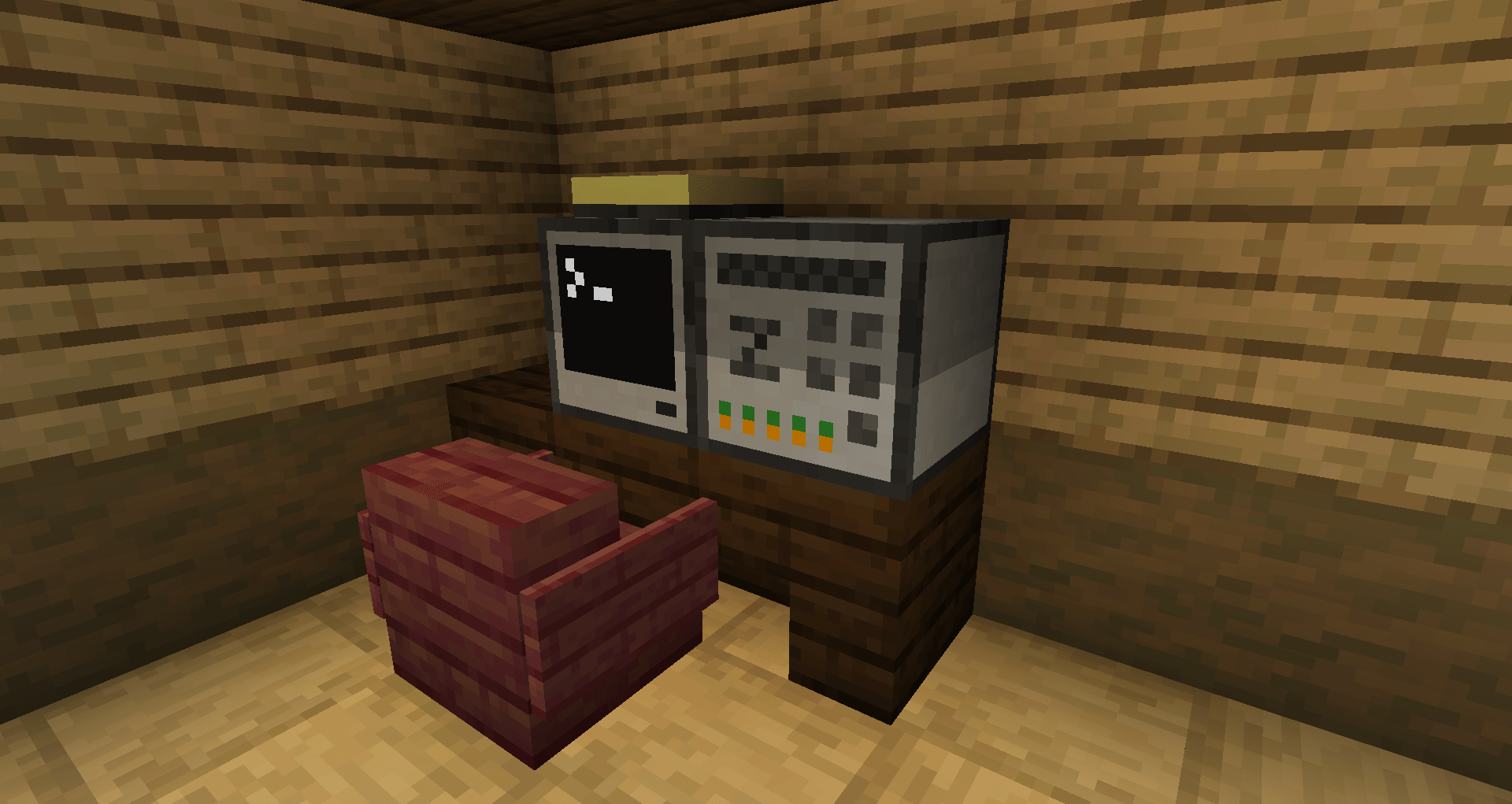

Wake Controller

A peripheral block used by a controller computer to manage registered wake nodes.

What it does:

exposes the wake_controller peripheral type
lists registered nodes
loads and unloads node chunks
reports whether nodes are currently loaded and how long temporary loads have left

Recipe:

Wake Controller recipe

Creative tab: Functional Blocks

How It Works

Place a Wake Node on the face of a CC: Tweaked computer.
On that computer, call setId("some_name") on the wake_node peripheral to register the node.
The computer that performs this registration becomes the node owner.
Authorize controller computers with grantController(computerId).
Place a Wake Controller next to another computer.
From the authorized controller computer, call loadNode("some_name") or loadFor("some_name", seconds).

The loaded chunk is the computer's chunk, not the Wake Node block's chunk.

Each node has an owner computer and an access control list (ACL) of authorized controller computer IDs.
Controller methods only operate on nodes the calling computer is authorized to manage.

Node registrations are saved, but active forced chunks are not. After a server restart, nodes still exist in the registry, but none of them remain loaded until requested again.

ComputerCraft API

Peripheral Types

Wake Node peripheral type: wake_node
Advanced Wake Node peripheral type: wake_node_advanced
Wake Controller peripheral type: wake_controller

Wake Node API

Find the peripheral with standard ComputerCraft calls such as:

local wake = peripheral.find("wake_node")

Check the API.md file on GitHub for a more compact version of the API documentation.

`setId(id)`

Registers this Wake Node under the given string ID.

id must be a non-empty string
on first successful registration, the calling computer becomes the node owner
if the same ID is already registered on the same node, the call is accepted
if the ID is already used by another node, the call raises an error

Example:

local wake = peripheral.find("wake_node")
assert(wake, "wake_node not found")

wake.setId("remote_factory")

`grantController(computerId)`

Authorizes a controller computer ID to manage this node.

only the owner computer can call this method
computerId must be a positive integer
idempotent: granting the same ID twice is accepted

`revokeController(computerId)`

Removes a controller computer ID from this node's allowed list.

only the owner computer can call this method
idempotent: revoking an ID that is not present is accepted

`listControllers()`

Returns a sorted list of authorized controller computer IDs.

`getPermissions()`

Returns ownership and controller ACL for this node:

{
  owner = 17,
  controllers = { 42, 73 }
}

`getId()`

Returns the current node ID, or nil if none has been assigned.

Example:

print(wake.getId())

`getChunk()`

Returns a table describing the attached computer's chunk:

{
  dimension = "minecraft:overworld",
  chunk_x = 12,
  chunk_z = -4
}

`getInfo()`

Returns a table with the node ID and chunk information:

{
  id = "remote_factory",
  dimension = "minecraft:overworld",
  chunk_x = 12,
  chunk_z = -4
}

If no ID has been assigned yet, id is returned as an empty string.

Advanced Wake Node API

The Advanced Wake Node exposes the wake_node_advanced peripheral type. It inherits all methods from the basic Wake Node and adds the following:

local wake = peripheral.find("wake_node_advanced")

`setRange(size)`

Sets the loaded area around the computer.

size must be 1, 3, or 5
only the node owner can call this method
if the node is currently loaded, the chunk set is updated live (unless disabled by config)
raises an error if the range exceeds the server max or the caller is not the owner

Example:

wake.setRange(5) -- load a 5×5 area (25 chunks)

`getRange()`

Returns the current range size (1, 3, or 5).

print(wake.getRange()) -- 3

`listAvailableRanges()`

Returns an array of allowed range values based on server configuration.

local ranges = wake.listAvailableRanges()
-- { 1, 3, 5 }

`getInfo()` (overridden)

Returns the same table as the basic getInfo() plus two extra fields:

{
  id = "remote_factory",
  dimension = "minecraft:overworld",
  chunk_x = 12,
  chunk_z = -4,
  range = 3,
  loaded_chunks = 9
}

Wake Controller API

Find the peripheral with standard ComputerCraft calls such as:

local ctl = peripheral.find("wake_controller")

`listNodes()`

Returns a list of registered node IDs accessible by the calling controller computer.

Example:

for _, id in ipairs(ctl.listNodes()) do
  print(id)
end

`getNodeInfo(id)`

Returns node information for an accessible node.

Raises an error if the node does not exist or if the calling controller is not authorized.

Returned table:

{
  id = "remote_factory",
  dimension = "minecraft:overworld",
  chunk_x = 12,
  chunk_z = -4,
  loaded = false,
  expires_at = 90
}

Notes:

loaded is a boolean
expires_at is only present for temporary loads
expires_at is reported as remaining seconds, not an absolute timestamp

`loadNode(id)`

Force-loads the node's chunk indefinitely, until one of these happens:

unloadNode(id) is called
unloadAll() is called
the server stops

Raises an error if the node does not exist.

Also raises an error if the calling controller is not authorized for this node.

`loadFor(id, seconds)`

Force-loads the node's chunk for a limited number of seconds.

seconds must be positive
seconds must not exceed the configured max_load_duration_seconds

Raises an error if the node does not exist or the duration is invalid.

Also raises an error if the calling controller is not authorized for this node.

`unloadNode(id)`

Unloads the given node if it is currently loaded.

`unloadAll()`

Unloads every currently loaded node accessible by the calling controller.

`isNodeLoaded(id)`

Returns true if the node is currently loaded, otherwise false.

Raises an error if the calling controller is not authorized for this node.

`getLoadedNodes()`

Returns a list of currently loaded node IDs accessible by the calling controller.

Example Setup

Remote Computer

Attach a Wake Node to a computer and register it:

local wake = peripheral.find("wake_node")
assert(wake, "wake_node not found")

wake.setId("remote_factory")
wake.grantController(42) -- controller computer ID
print(textutils.serialize(wake.getInfo()))

Controller Computer

Load the remote chunk for two minutes:

local ctl = peripheral.find("wake_controller")
assert(ctl, "wake_controller not found")

print("Known nodes:")
for _, id in ipairs(ctl.listNodes()) do
  print(" - " .. id)
end

ctl.loadFor("remote_factory", 120)
print(textutils.serialize(ctl.getNodeInfo("remote_factory")))

Configuration

Server config keys:

chunk_loading.max_loaded_nodes: maximum number of nodes that may be loaded at the same time. Default: 16
chunk_loading.max_load_duration_seconds: maximum duration accepted by loadFor. Default: 300
chunk_loading.default_load_radius: chunk radius around the target computer. 0 means only the computer's own chunk. Default: 0
chunk_loading.chunk_ops_per_tick: maximum number of queued load/unload operations processed each server tick. Lower values smooth spikes but wake nodes more slowly. Default: 3

Common config keys:

logging.enable_node_logs: enables server log messages for register, load, unload, and expiration events. Default: true

Behavior Notes

Registrations are shared through a world-level registry.
Each node has an owner computer ID and an ACL of authorized controller computer IDs.
Controller methods only operate on nodes the calling controller is authorized to manage.
If a Wake Node is broken, its registration is removed.
If the supporting computer is removed, the Wake Node breaks automatically.
Temporary chunk loads expire on server tick and are cleaned up automatically.
On server stop, all active chunk tickets are released.

Sample Scripts

The repository includes example Lua scripts in sampleScripts/recallCreateTrains/ demonstrating how Wake Nodes can wake remote Create station computers and coordinate train recall flows over Rednet.

License

Code is licensed under the MIT License.

Some bundled assets (textures) are licensed under the ComputerCraft Public License v1.0.0 (CCPL).

See the LICENSE and [LICENSE-CCPL](https://github.com/cogilabs/CC-
