BetterSpeedHUD

A speed HUD mod for **Minecraft Forge 1.20.1/1.21.1**: displays a sleek speed head-up display (HUD) showing speed, gear, and a speed bar at the bottom‑right corner of the screen when riding a vehicle or gliding with an elytra. All elements can be freely adjusted in‑game.

> A Better HUD mod to show your speed on your screen. Highly customizable. @WYH827

---

## Features

- **Real‑time speed display**: measures speed based on the player's actual coordinate displacement (blocks/second × 72 converted to km/h). Compatible with vanilla vehicles and modded vehicles (e.g., MrCrayfish's vehicle mod). Elytra gliding is also supported.

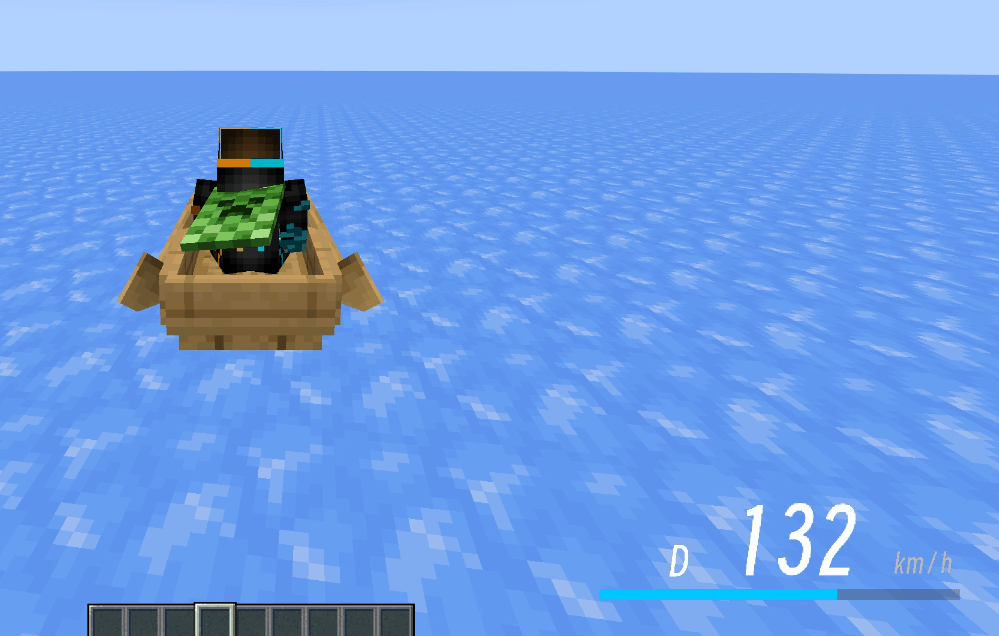

- **Visual HUD**: `D` gear on the left, three‑digit large speed number in the center (leading zeros shown in grey), `km/h` on the right, and a speed bar below.
- **Adjustable max speed** (default 200): the speed bar always displays the percentage of `speed / max speed`, capped at 100% when exceeded.
- **Toggle for actual speed**: when disabled, speed stops increasing once it reaches the max speed (pegs the meter); when enabled, the actual speed is always shown, while the bar still caps at 100% of the max speed.
- **Two fonts**: Minecraft default font / Modern bitmap font (switchable in‑game with one click).
- **In‑game configuration screen** (default key **H**):
  - The overall HUD and individual elements (D, digits, km/h, speed bar) each have independent position, size, and visibility controls;
  - Adjust via drag‑and‑drop, arrow keys, scroll wheel, or shortcuts;
  - A "Hide Buttons" button in the top‑right corner hides all UI buttons for unobstructed viewing and positioning;
  - One‑click switch to Modern preset / restore defaults;
  - Max speed +/‑ buttons.
- **Display conditions**: show on vehicle / show on elytra / always show (when "always" is enabled, the first two are locked to on).
- **HUD master toggle**: can completely hide the HUD at any time.
- **Safe configuration writing**: dragging and adjustments only modify in‑memory values; the config file is written only when the settings screen is closed, avoiding frequent disk writes.

---

## Installation

1. Requires **Minecraft 1.20.1 + Forge 47.x** (client‑side), Java 17.
2. Place `BetterSpeedHUD-1.1.jar` into the `.minecraft/mods` folder.
3. Launch the game, enter a world, and ride a vehicle or glide with an elytra to see the HUD.

---

## In‑Game Configuration

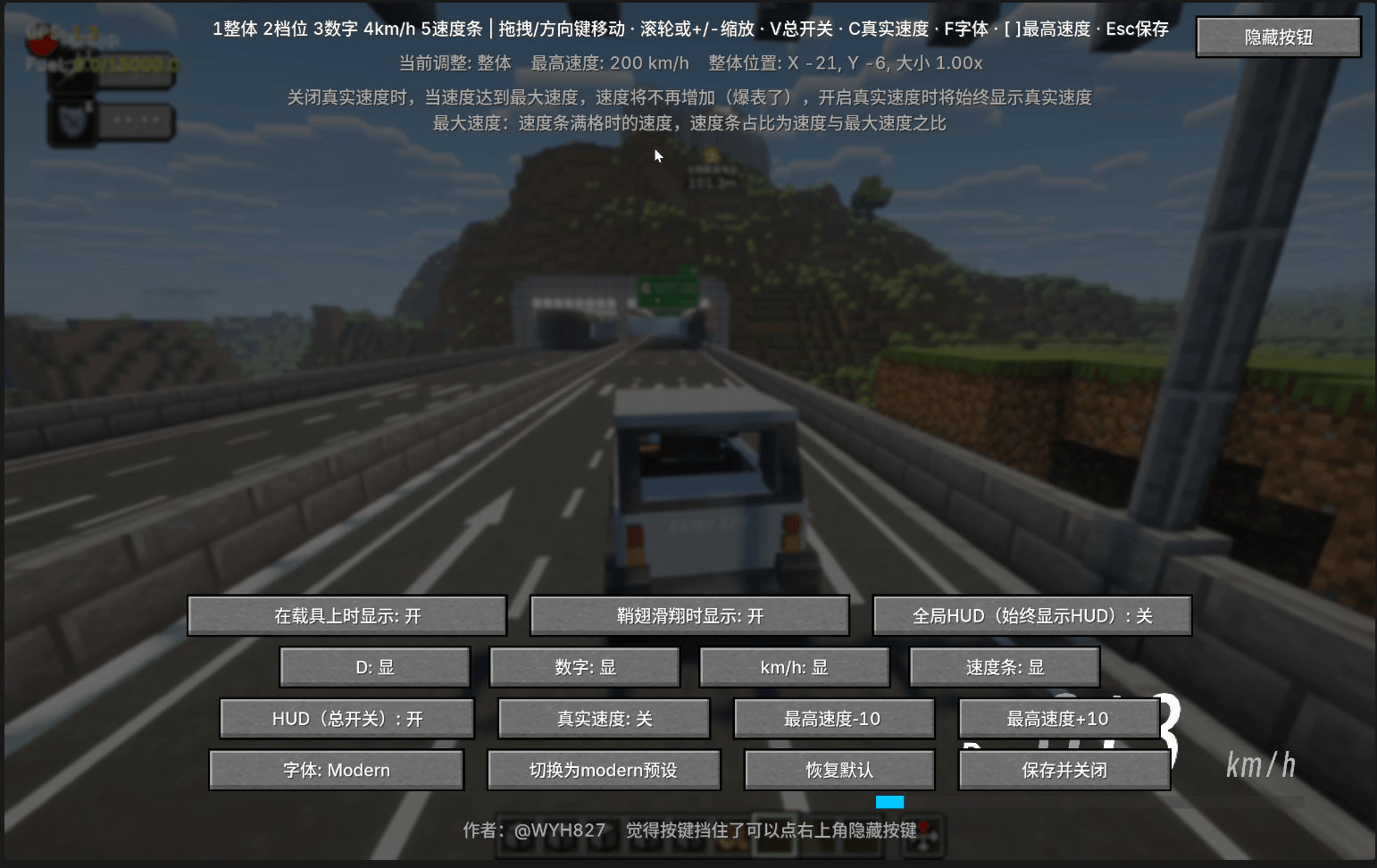

Press **H** to open the settings screen (can also be accessed via the Mod Menu's "Config" button).

### Key Controls

### Button Descriptions

- First row: Show on vehicle / Show on elytra / Global HUD (always show HUD)
- Second row: Toggle visibility for D / Digits / km/h / Speed bar individually
- Third row: HUD (master toggle) / Actual speed / Max speed ‑10 / Max speed +10
- Fourth row: Font / Switch to Modern preset / Restore defaults / Save & Close
- Top‑right corner: Hide Buttons (hides all UI buttons for unobstructed viewing and positioning)

> Note: When actual speed is disabled, speed stops increasing once it hits the max speed (pegs the meter). When enabled, the actual speed is always shown.
>
> Note: Max speed is the speed at which the bar becomes full; the bar's fill ratio is `speed / max speed`.

---

## Configuration File

The configuration file is located at `.minecraft/config/speedhud-client.toml`. Main fields:

```toml
[hud]
xOffset = 0        # Overall horizontal offset (positive = right)
yOffset = 0        # Overall vertical offset (positive = down)
scale = 1.0        # Overall scale
enabled = true     # HUD master toggle
showOnVehicle = true   # Show on vehicle
showOnElytra = true    # Show on elytra
globalHud = false      # Always show
maxSpeed = 200         # Max speed (full bar value)
showActualSpeed = false # Show actual speed
font = "minecraft"     # minecraft / modern

[hud.modules]          # Module visibility
gear = true
speed = true
unit = true
bar = true

[hud.elements.gear]    # D gear position and scale
x = 16
y = 40
scale = 1.0

[hud.elements.speed]   # Speed digits
x = 76
y = 34
scale = 1.0

[hud.elements.unit]    # km/h
x = 176
y = 46
scale = 1.0

[hud.elements.bar]     # Speed bar
x = 0
y = 58
scale = 1.0
```

---

## Modern Font

The Modern font is a custom bitmap font (generated from Smiley Sans Oblique):

- Texture: `assets/speedhud/textures/font/modern.png`, 1152×192, with 18 characters per row, each cell 64×192;
- Character order: `0123456789DKM/Hkmh`;
- Glyphs are aligned to the bottom of the cell (row 192);
- Definition file: `assets/speedhud/font/modern.json` (height 192 / ascent 7).

To replace the font, provide a PNG following the above specifications and replace `assets/speedhud/textures/font/modern.png`.

---

## Open Source License

This project is released under the **MIT License**. See [LICENSE.txt](LICENSE.txt) for details.

Author: @WYH827
