Astrocompass

Astrocompass is a data bridge mod for CC: Tweaked that gives computers direct access to the Create Aeronautics / Sable physics engine — the data source you need for fire-control radars, auto-turrets, head-tracking aim systems and ship monitoring scripts.

What it does

• Ship-aware coordinates: on a physics structure, your computer reports real world coordinates instead of the far-away projected plot coordinates.
• Full physics state: position, orientation quaternion, linear/angular velocity, mass, center of mass, inertia tensor and last-tick pose of your ship — all in one call.

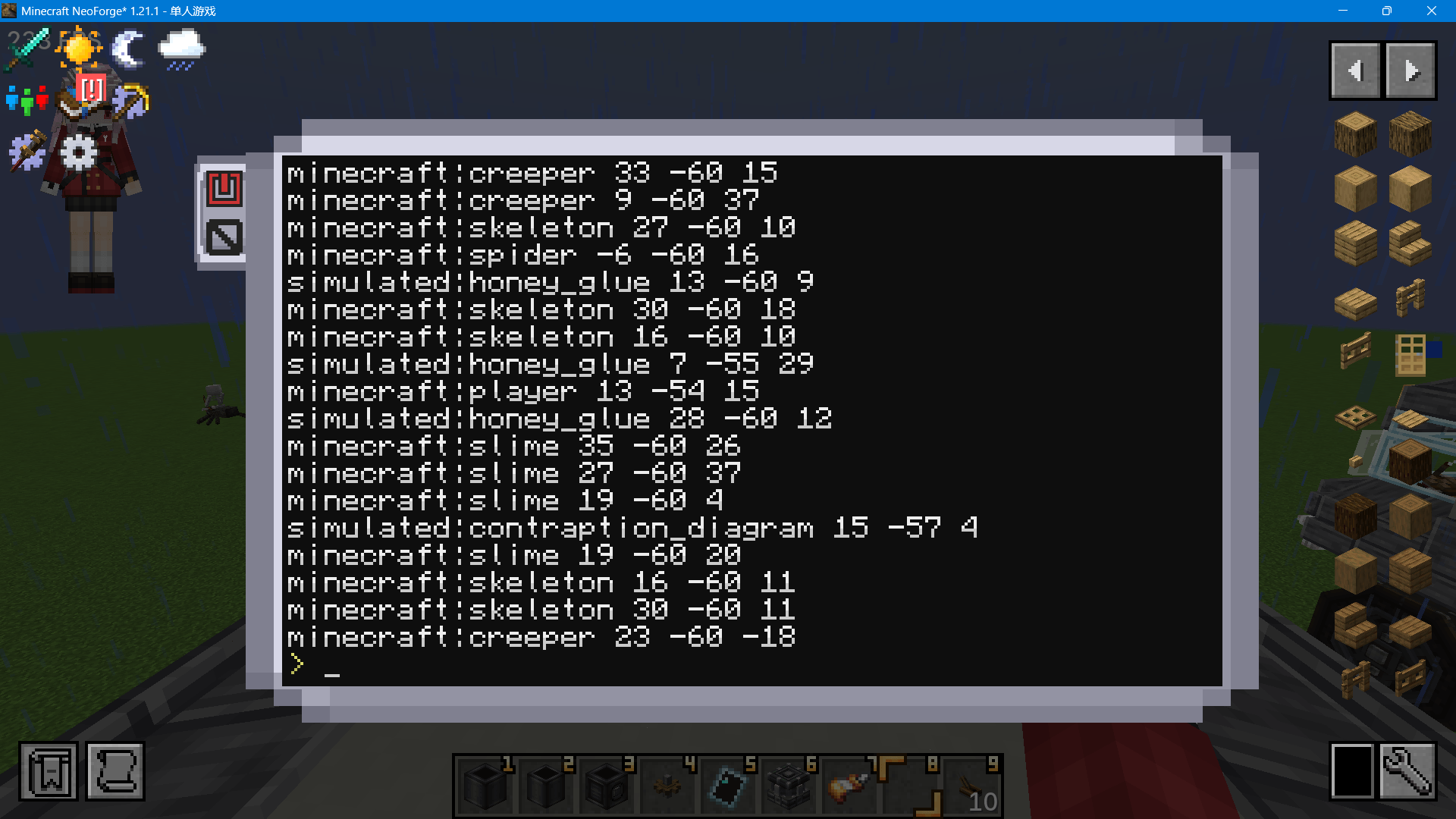

• Entity scanning: players, animals, monsters or everything in range, returned in world coordinates. Perfect radar feed.
• Environment physics: gravity, air pressure, magnetic north and drag of the current dimension (aero module).
• Pocket computer support: read the holder's position and view vector for head-aim builds.
• Plot ↔ world coordinate transforms both ways.

All values are read directly from the physics engine on the Java side, which keeps the call path short — a good fit for control loops that poll ship data every tick.

Requirements

• CC: Tweaked (required)
• Create Aeronautics / Sable (optional — ship and physics-structure data)

Usage

The API is injected as a Lua global (not a peripheral):

local ac = astrocompass

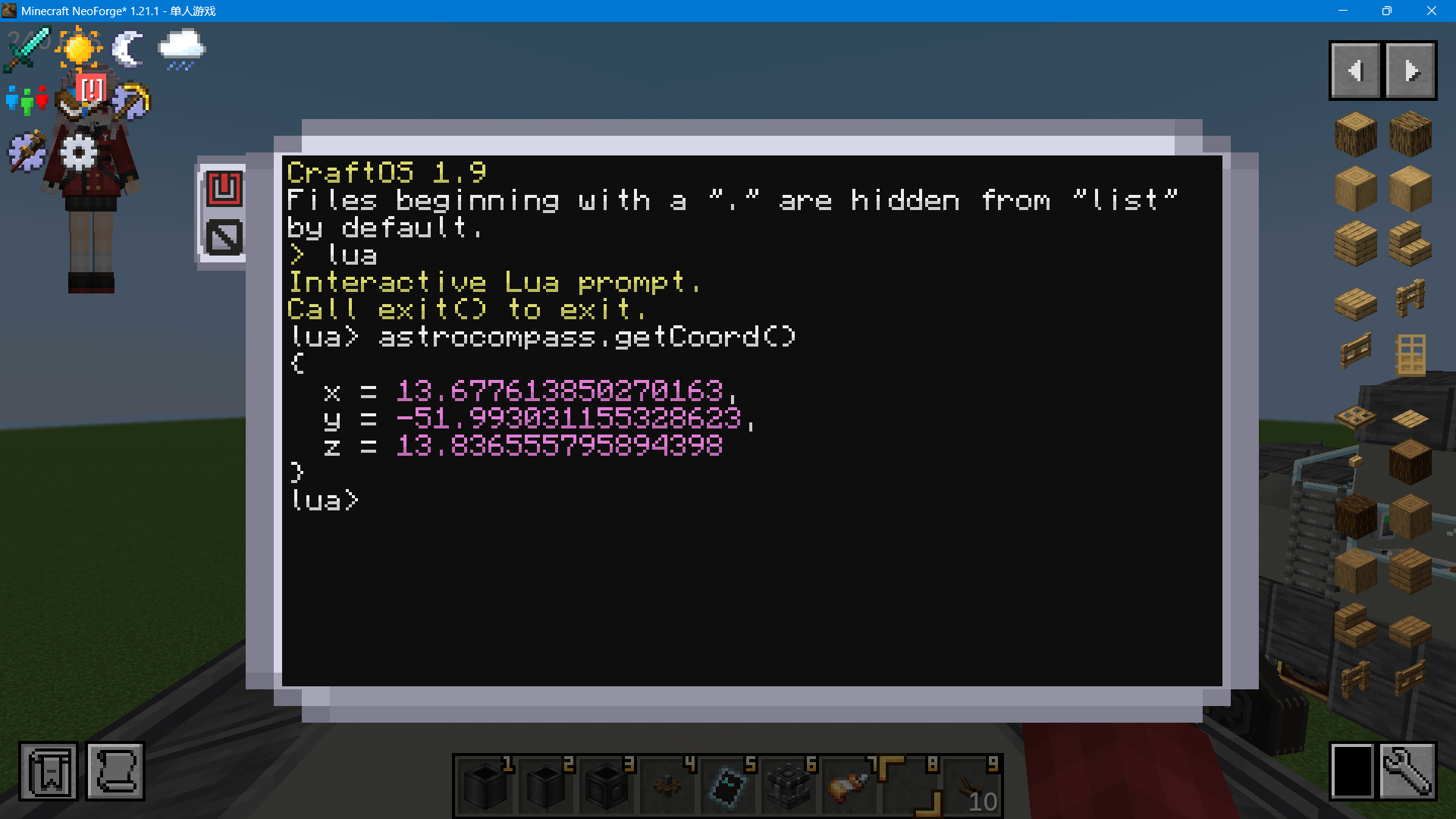

print(ac.getCoord())            -- world coordinates, ship-aware
local ship = ac.getSelfSableShip()  -- full physics state table
for uuid, e in pairs(ac.getEntitiesAll(64)) do print(e.type, e.x, e.y, e.z) end

Full API reference and example scripts (radar test, pocket test, full smoke test) are on GitHub — see the Source link.

Origin

Astrocompass is a ground-up rewrite of the discontinued Metaphysics by KallenKas024 (AGPL-3.0), re-implemented for the Sable physics engine and released under the same license.
