Ever wondered where your arrow, snowball, or potion will land? This mod provides a visual preview of projectile trajectories, similar to PTP, but with improved prediction accuracy and no multiplayer limitations.

🔎 Features

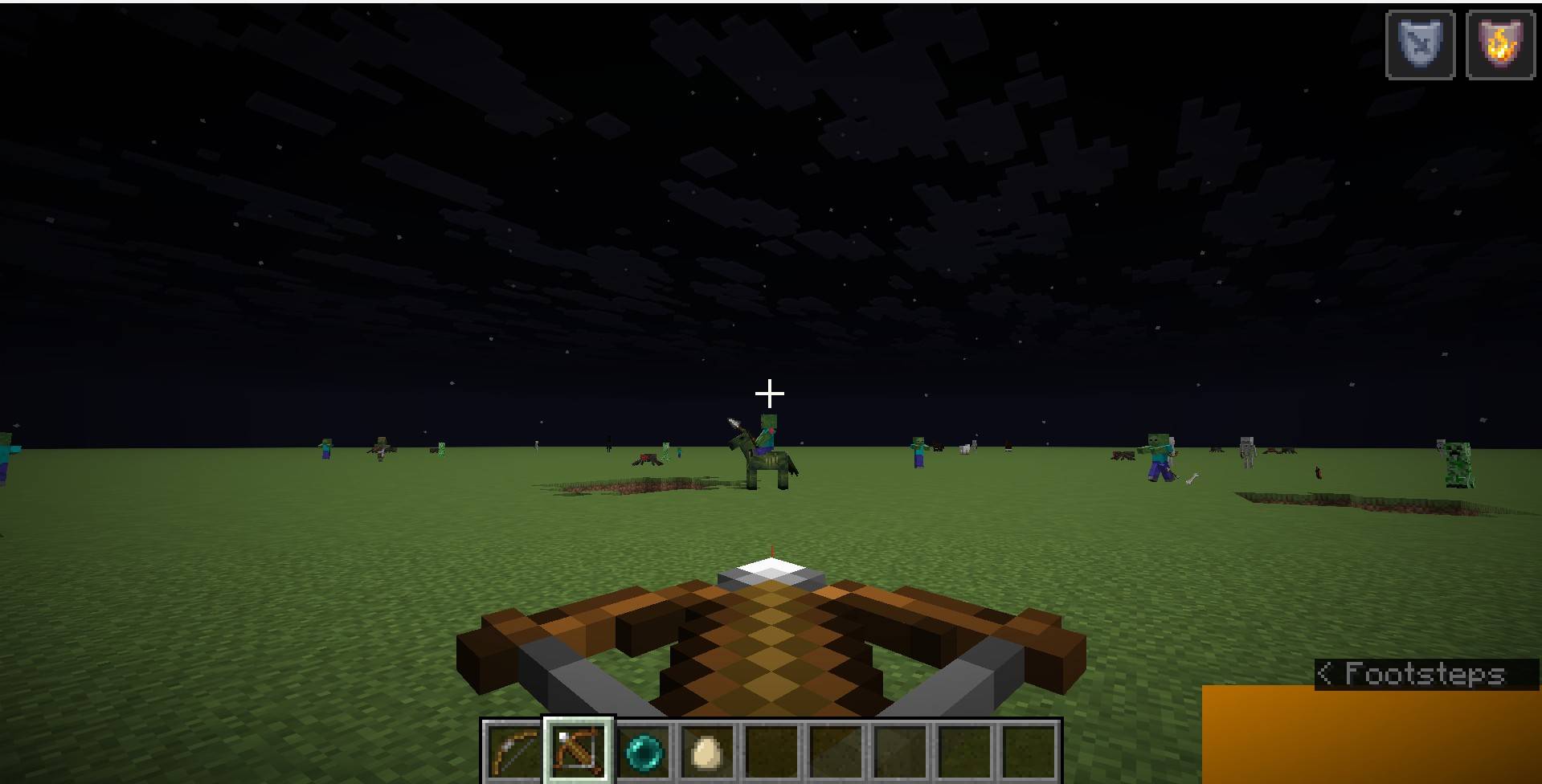

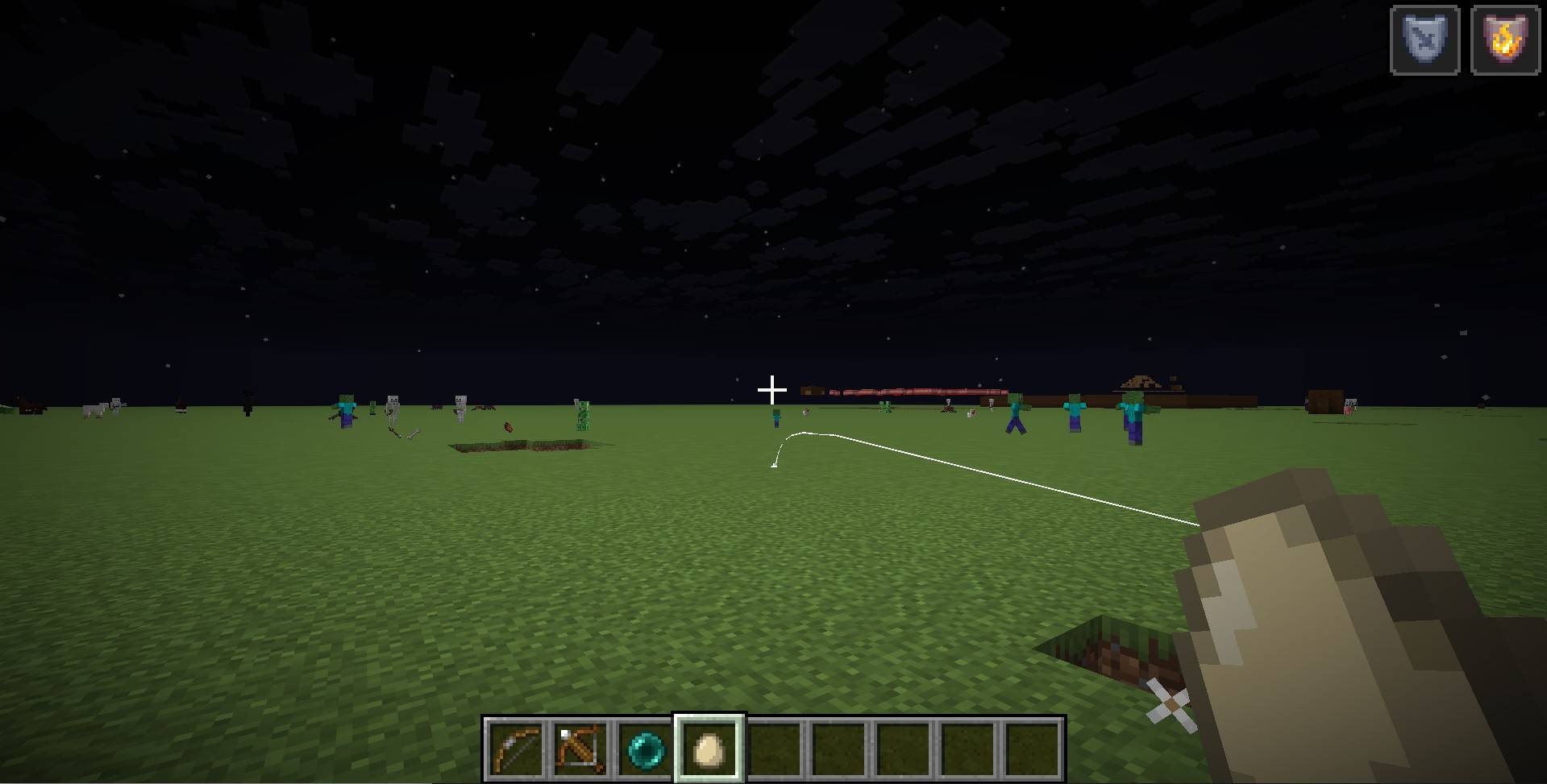

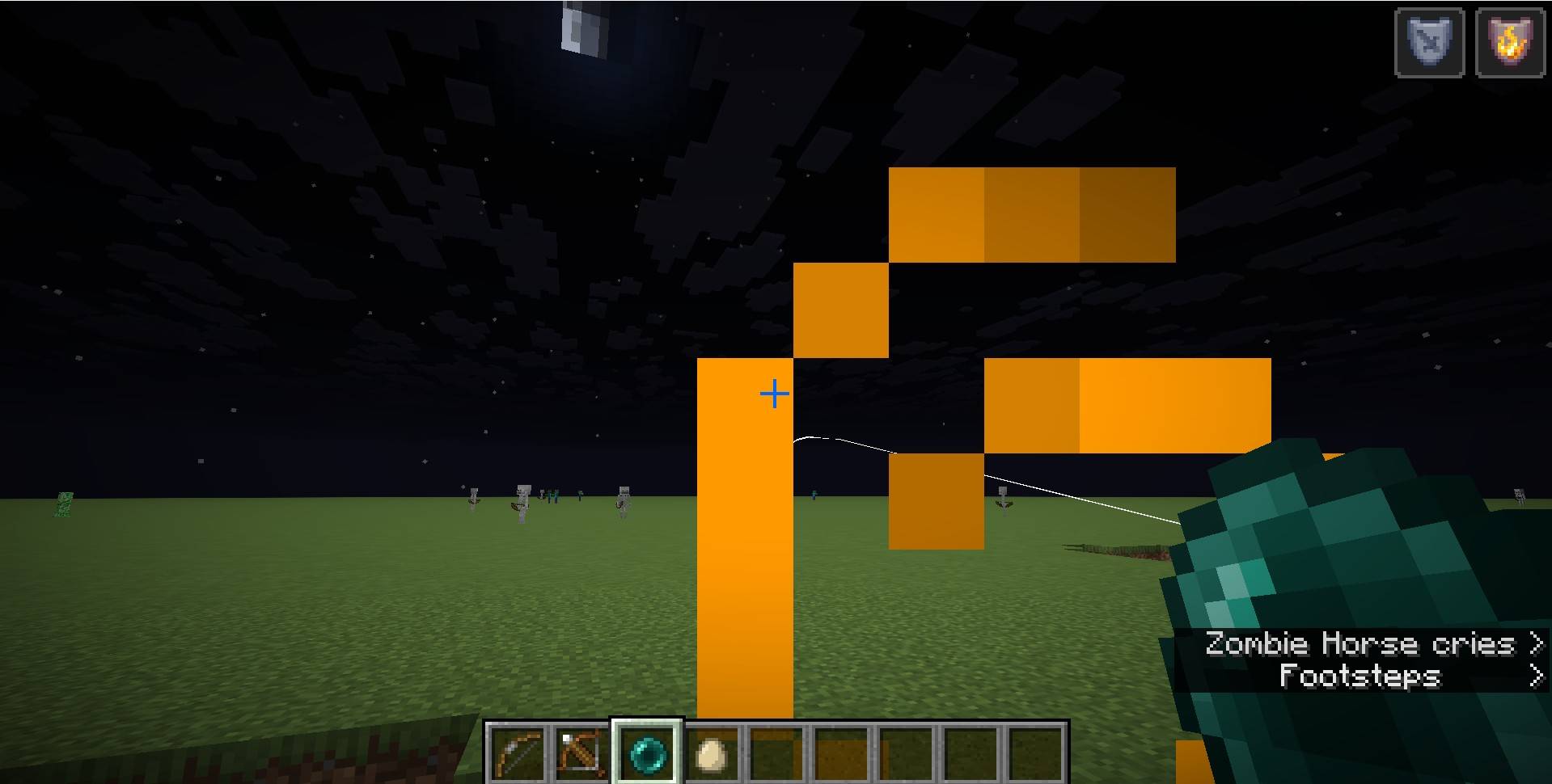

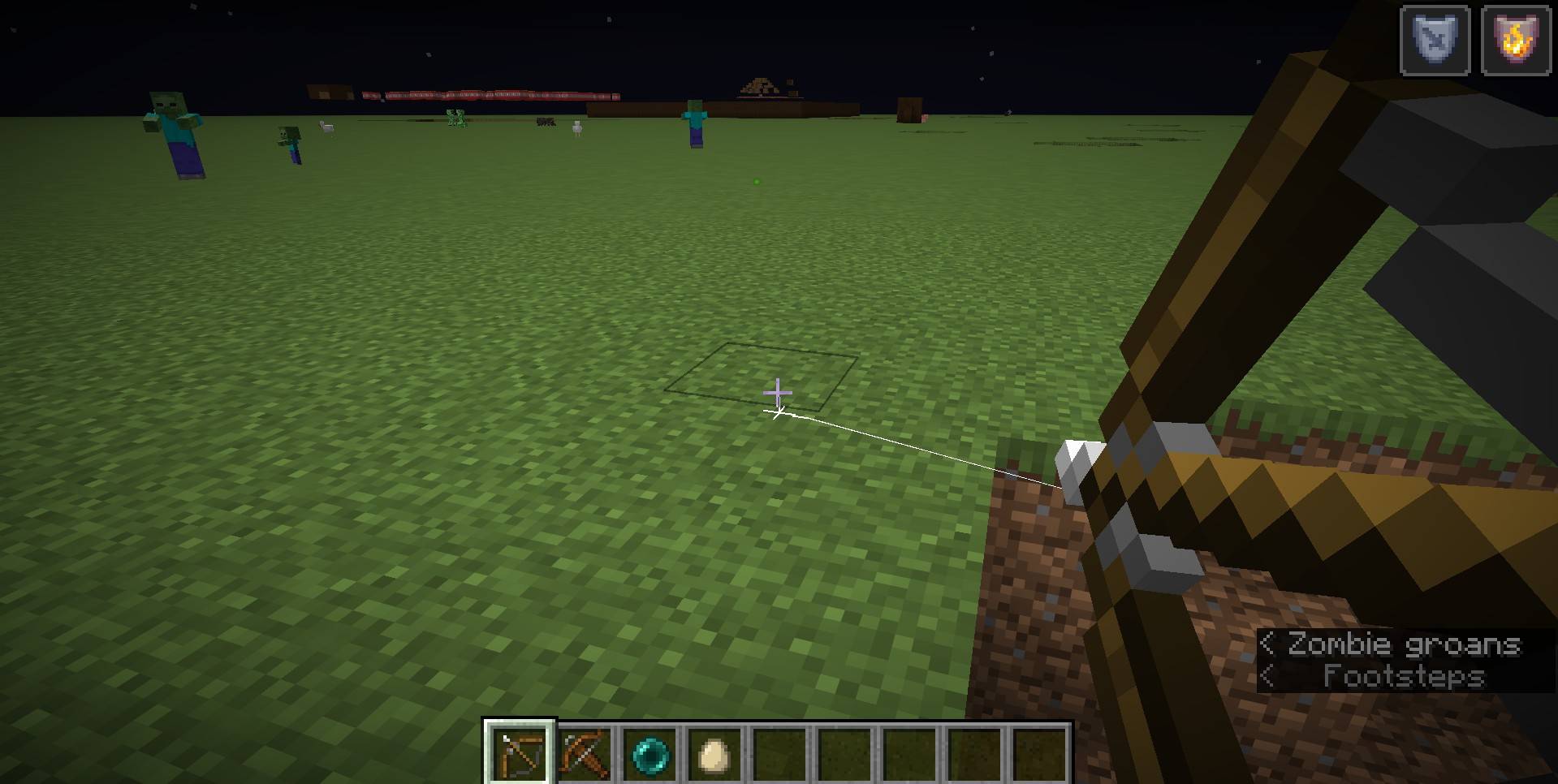

• Trajectory Visualization: Displays the expected path of your projectile before launching.

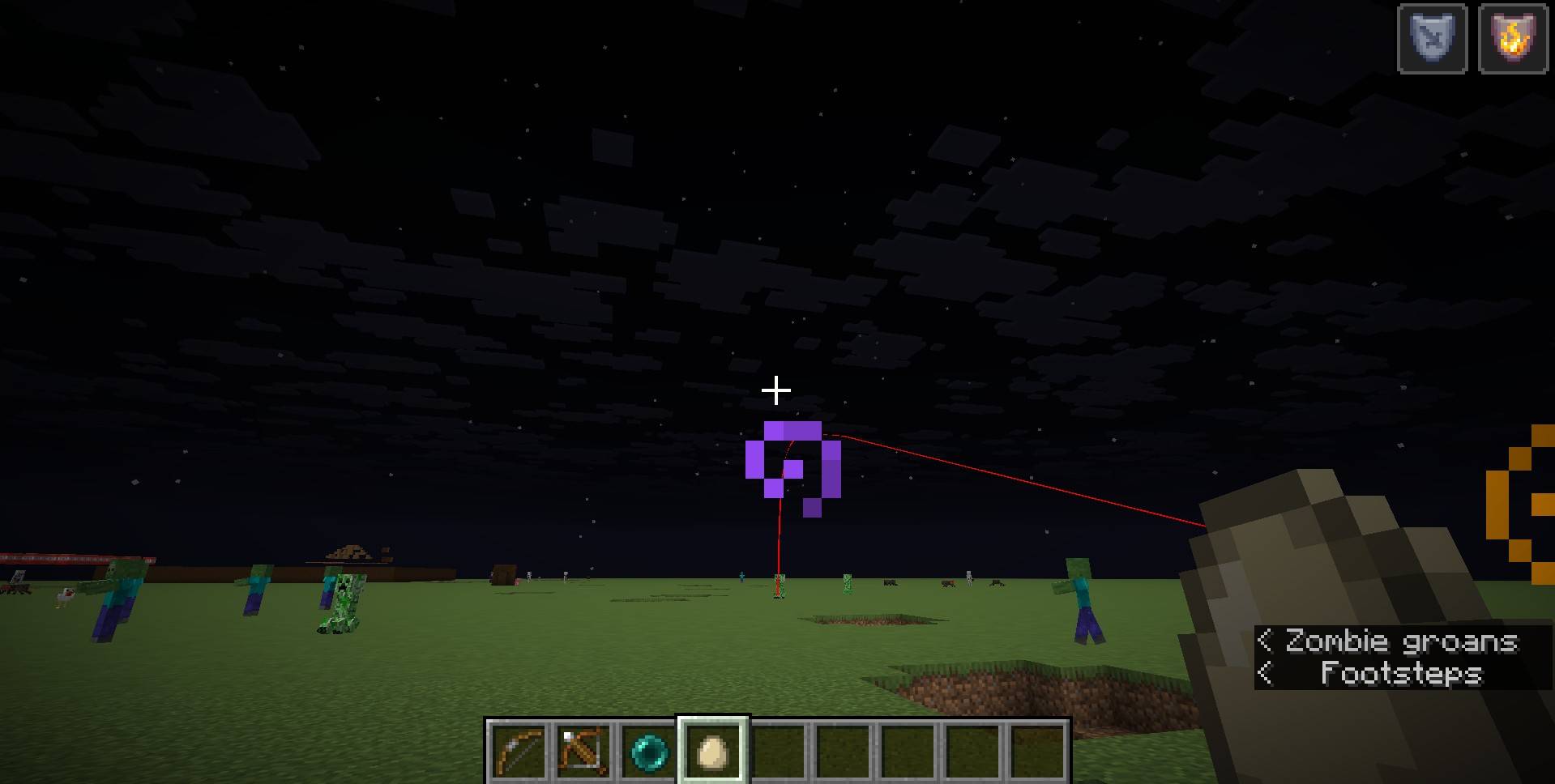

• Target Highlighting: Trajectory color indicates a higher likelihood of hitting a target.

⚠️ Limitations and Notes

• Minecraft projectile physics include random spread offsets, so the actual impact position may slightly differ from the preview.
• However, trajectory prediction is designed to be more precise than the original PTP implementation.

🔬 Technical Changes Compared to Original PTP

This fork modifies both the simulation logic and multiplayer behavior:

Multiplayer behavior

• Removed the server handshake check (serverHasMod)
• Removed networking validation logic
• Trajectory preview is now always available client-side (no server requirement)

Simulation changes

1. Removed projectileInfo.order-based update system
   The original implementation updated motion using a configurable order array. This fork replaces it with a fixed per-tick update sequence:
   • position update
   • drag application
   • gravity application
   This makes motion simulation consistent and closer to vanilla projectile behavior.

1. Reworked entity collision handling
   • Reduced broad-phase AABB inflation from 1.0 to 0.3
   • Added distance-based spread-aware entity hit detection
   • Added a “guaranteed hit” detection flag when the ray intersects the true bounding box

1. Improved spread simulation
   • Added distance-based spread offset:
     spreadOffset = normalizedVelocity * (distanceFromStart * maxSpreadFactor)
   • Adjusted spread multiplier from * 3.0 to * 2.0
   • Spread is now simulated dynamically per step instead of being approximated

1. Refined water physics handling
   • More explicit switching between normal drag/gravity and underwater values
   • Applied consistently during simulation loop

1. Minor stability improvements
   • Early velocity zero-check (vel.lengthSqr() < 1e-8)
   • Added startPos tracking for spread calculation

📦 Modpacks

Feel free to include this mod in your modpacks.
